HOLDERS

straight angle holder

straight angle holder

Quick assemblyQuick assembly Corrosion resistanceCorrosion resistance Available in coloursAvailable in colours Designed for industrial facilitiesDesigned for industrial facilities Designed for residential facilitiesDesigned for residential facilities

Holders for conducting the ground wire on the roofs of buildings covered with shingles, roofing felt, sheet metal.

Attention! When placing an order, provide the symbol.
H
(mm) 		Hd
(mm) 		conductor
(mm) 		hot galvanised steel copper painted stainless acid-resistant V4A steel
96 70 Ø8 symbol
type		 C192592
AN-10R/OG/-N PDF 		C372592
AN-10R/CU/-N PDF 		C462592
AN-10R/LA/-N PDF 		C282592
AN-10R/OH/-N PDF
116 90 Ø8 symbol
type		 C192588
AN-10/OG/-N PDF 		C372588
AN-10/CU/-N PDF 		C462588
AN-10/LA/-N PDF 		C282588
AN-10/OH/-N PDF

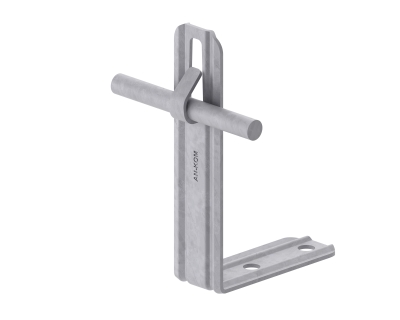

straight angle holder

straight angle holder

Quick assemblyQuick assembly Corrosion resistanceCorrosion resistance Available in coloursAvailable in colours Designed for industrial facilitiesDesigned for industrial facilities Designed for residential facilitiesDesigned for residential facilities

Holders for conducting the ground wire on the roofs of buildings covered with shingles, roofing felt, sheet metal.

Attention! When placing an order, provide the symbol.
H
(mm) 		Hd
(mm) 		conductor
(mm) 		hot galvanised steel copper painted
104 70 Ø8 symbol
type		 C192600
AN-11R/OG/-N PDF 		C372600
AN-11R/CU/-N PDF 		C462600
AN-11R/LA/-N PDF
124 90 Ø8 symbol
type		 C192596
AN-11/OG/-N PDF 		C372596
AN-11/CU/-N PDF 		C462596
AN-11/LA/-N PDF
twisted angle holder

twisted angle holder

Quick assemblyQuick assembly Corrosion resistanceCorrosion resistance Available in coloursAvailable in colours Designed for industrial facilitiesDesigned for industrial facilities Designed for residential facilitiesDesigned for residential facilities

Holders for conducting the ground wire on the roofs of buildings covered with shingles, roofing felt, sheet metal.

Attention! When placing an order, provide the symbol.
H
(mm) 		Hd
(mm) 		conductor
(mm) 		hot galvanised steel copper painted stainless acid-resistant V4A steel
96 70 Ø8 symbol
type		 C192576
AN-08R/OG/-N PDF 		C372576
AN-08R/CU/-N PDF 		C462576
AN-08R/LA/-N PDF 		C282576
AN-08R/OH/-N PDF
116 90 Ø8 symbol
type		 C192572
AN-08/OG/-N PDF 		C372572
AN-08/CU/-N PDF 		C462572
AN-08/LA/-N PDF 		C282572
AN-08/OH/-N PDF
twisted angle holder

twisted angle holder

Quick assemblyQuick assembly Corrosion resistanceCorrosion resistance Available in coloursAvailable in colours Designed for industrial facilitiesDesigned for industrial facilities Designed for residential facilitiesDesigned for residential facilities

Holders for conducting the ground wire on the roofs of buildings covered with shingles, roofing felt, sheet metal.

Attention! When placing an order, provide the symbol.
H
(mm) 		Hd
(mm) 		conductor
(mm) 		hot galvanised steel copper painted
104 70 Ø8 symbol
type		 C192584
AN-09R/OG/-N PDF 		C372584
AN-09R/CU/-N PDF 		C462584
AN-09R/LA/-N PDF
EasyM screw-down holder

EasyM screw-down holder

Quick assemblyQuick assembly Corrosion resistanceCorrosion resistance Designed for industrial facilitiesDesigned for industrial facilities Designed for residential facilitiesDesigned for residential facilities

The holder is screwed to sheet metal, roofing felt, shingles. The assembly of the conductor is done by means of a latch.

Attention! When placing an order, provide the symbol.
conductor
(mm) 		stainless acid-resistant V4A steel
Ø8 symbol
type		 C282632
AN-59EMB/OH/ PDF
farmer screw

farmer screw

Quick assemblyQuick assembly Designed for industrial facilitiesDesigned for industrial facilities Designed for residential facilitiesDesigned for residential facilities

The farmer screw is used to fix the holders screwed to sheet metal or wood.

Attention! When placing an order, provide the symbol.
Ø
(mm) 		L
(mm) 		purpose electro-galvanised steel
4,8 35 for wood symbol
type		 C942684
AN-59EMF1 PDF
4,8 25 for metal symbol
type		 C942688
AN-59EMF2 PDF
EPDM pad holder

EPDM pad holder

Quick assemblyQuick assembly Designed for industrial facilitiesDesigned for industrial facilities Designed for residential facilitiesDesigned for residential facilities

Additional EPDM pad for farm screws.

Attention! When placing an order, provide the symbol.
electro-galvanised steel
symbol
type		 C942692
AN-59EMF3 PDF
straight holder

straight holder

Quick assemblyQuick assembly Corrosion resistanceCorrosion resistance Available in coloursAvailable in colours Designed for industrial facilitiesDesigned for industrial facilities Designed for residential facilitiesDesigned for residential facilities

Handles mounted to roof fittings, windbreaks, sheet metal roofing.

Attention! When placing an order, provide the symbol.
conductor
(mm) 		hot galvanised steel copper painted stainless acid-resistant V4A steel
Ø8 symbol
type		 C192604
AN-12/OG/-N PDF 		C372604
AN-12/CU/-N PDF 		C462604
AN-12/LA/-N PDF 		C282604
AN-12/OH/-N PDF
straight holder

straight holder

Quick assemblyQuick assembly Corrosion resistanceCorrosion resistance Available in coloursAvailable in colours Designed for industrial facilitiesDesigned for industrial facilities Designed for residential facilitiesDesigned for residential facilities

Handles mounted to roof fittings, windbreaks, sheet metal roofing.

Attention! When placing an order, provide the symbol.
conductor
(mm) 		hot galvanised steel copper painted
Ø8 symbol
type		 C192608
AN-13/OG/-N PDF 		C372608
AN-13/CU/-N PDF 		C462608
AN-13/LA/-N PDF
standing seam holder

standing seam holder

Quick assemblyQuick assembly Corrosion resistanceCorrosion resistance Available in coloursAvailable in colours Designed for industrial facilitiesDesigned for industrial facilities Designed for residential facilitiesDesigned for residential facilities

Installation of wires on roofs covered with seam sheet metal. The non-invasive assembly of the holder to the seam eliminates possible water leaks in the places of its assembly.

Attention! When placing an order, provide the symbol.
conductor
(mm) 		hot galvanised steel aluminium alloy painted stainless acid-resistant V4A steel
Ø8 symbol
type		 C192568
AN-06J/OG/ PDF 		C922568
AN-06J/ALS/ PDF 		C462568
AN-06J/LA/ PDF 		C282568
AN-06J/OH/ PDF
universal seam wire holder

universal seam wire holder

Quick assemblyQuick assembly Corrosion resistanceCorrosion resistance Available in coloursAvailable in colours Designed for industrial facilitiesDesigned for industrial facilities Designed for residential facilitiesDesigned for residential facilities

Installation of wires on roofs covered with sheet metal along the seam.

Attention! When placing an order, provide the symbol.
conductor
(mm) 		hot galvanised steel aluminium alloy copper painted stainless acid-resistant V4A steel
Ø8 - Ø10 symbol
type		 C192008
AN-06A/OG/ PDF 		C922008
AN-06A/ALS/ PDF 		C372008
AN-06A/CU/ PDF 		C462008
AN-06A/LA/ PDF 		C282008
AN-06A/OH/ PDF
universal seam wire holder

universal seam wire holder

Quick assemblyQuick assembly Corrosion resistanceCorrosion resistance Designed for industrial facilitiesDesigned for industrial facilities Designed for residential facilitiesDesigned for residential facilities

Installation of wires on roofs covered with sheet metal along the seam.

Attention! When placing an order, provide the symbol.
A
(mm) 		conductor
(mm) 		hot galvanised steel
4 - 16 Ø8 - Ø10 symbol
type		 C192760
AN-06D/OG/ PDF
universal seam wire holder

universal seam wire holder

Quick assemblyQuick assembly Corrosion resistanceCorrosion resistance Available in coloursAvailable in colours Designed for industrial facilitiesDesigned for industrial facilities Designed for residential facilitiesDesigned for residential facilities

Installation of wires on roofs covered with sheet metal along the seam.

Attention! When placing an order, provide the symbol.
conductor
(mm) 		hot galvanised steel copper painted stainless acid-resistant V4A steel
Ø8 symbol
type		 C192012
AN-06B/OG/ PDF 		C372012
AN-06B/CU/ PDF 		C462012
AN-06B/LA/ PDF 		C282012
AN-06B/OH/ PDF
seam wire holder

seam wire holder

Quick assemblyQuick assembly Corrosion resistanceCorrosion resistance Available in coloursAvailable in colours Designed for industrial facilitiesDesigned for industrial facilities Designed for residential facilitiesDesigned for residential facilities

Installation of wires on roofs covered with sheet metal along the seam.

Attention! When placing an order, provide the symbol.
conductor
(mm) 		hot galvanised steel copper painted stainless acid-resistant V4A steel
Ø8 symbol
type		 C192020
AN-06G/OG/ PDF 		C372020
AN-06G/CU/ PDF 		C462020
AN-06G/LA/ PDF 		C282020
AN-06G/OH/ PDF

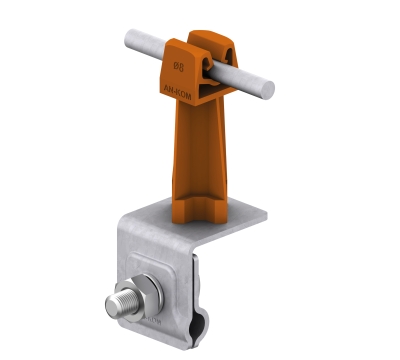

universal seam wire holder

universal seam wire holder

Quick assemblyQuick assembly Corrosion resistanceCorrosion resistance UV resistanceUV resistance Available in coloursAvailable in colours Designed for industrial facilitiesDesigned for industrial facilities Designed for residential facilitiesDesigned for residential facilities

Installation of wires on roofs covered with sheet metal along the seam.

Attention! When placing an order, provide the symbol.
pole colour conductor
(mm) 		hot galvanised steel copper painted stainless acid-resistant V4A steel
RAL
8004 		Ø8 symbol
type		 C192024
AN-06H/OG/ PDF 		C372024
AN-06H/CU/ PDF 		C462024
AN-06H/LA/ PDF 		C282024
AN-06H/OH/ PDF
RAL
9005 		Ø8 symbol
type		 C192028
AN-06H/OG/C PDF 		C372028
AN-06H/CU/C PDF 		C462028
AN-06H/LA/C PDF 		C282028
AN-06H/OH/C PDF
RAL
7047 		Ø8 symbol
type		 C192032
AN-06H/OG/S PDF 		C372032
AN-06H/CU/S PDF 		C462032
AN-06H/LA/S PDF 		C282032
AN-06H/OH/S PDF
universal seam wire holder

universal seam wire holder

Quick assemblyQuick assembly Corrosion resistanceCorrosion resistance UV resistanceUV resistance Available in coloursAvailable in colours Designed for industrial facilitiesDesigned for industrial facilities Designed for residential facilitiesDesigned for residential facilities

Installation of wires on roofs covered with sheet metal along the seam.

Attention! When placing an order, provide the symbol.
pole colour conductor
(mm) 		hot galvanised steel copper painted stainless acid-resistant V4A steel
RAL
8004 		Ø8 symbol
type		 C192036
AN-06HN/OG/ PDF 		C372036
AN-06HN/CU/ PDF 		C462036
AN-06HN/LA/ PDF 		C282036
AN-06HN/OH/ PDF
RAL
9005 		Ø8 symbol
type		 C192040
AN-06HN/OG/C PDF 		C372040
AN-06HN/CU/C PDF 		C462040
AN-06HN/LA/C PDF 		C282040
AN-06HN/OH/C PDF
RAL
7047 		Ø8 symbol
type		 C192044
AN-06HN/OG/S PDF 		C372044
AN-06HN/CU/S PDF 		C462044
AN-06HN/LA/S PDF 		C282044
AN-06HN/OH/S PDF
twisted seam wire holder

twisted seam wire holder

Quick assemblyQuick assembly Corrosion resistanceCorrosion resistance Available in coloursAvailable in colours Designed for industrial facilitiesDesigned for industrial facilities Designed for residential facilitiesDesigned for residential facilities

Installation of wires on roofs covered with sheet metal along the seam.

Attention! When placing an order, provide the symbol.
conductor
(mm) 		hot galvanised steel copper painted stainless acid-resistant V4A steel
Ø8 symbol
type		 C192052
AN-08A/OG/ PDF 		C372052
AN-08A/CU/ PDF 		C462052
AN-08A/LA/ PDF 		C282052
AN-08A/OH/ PDF

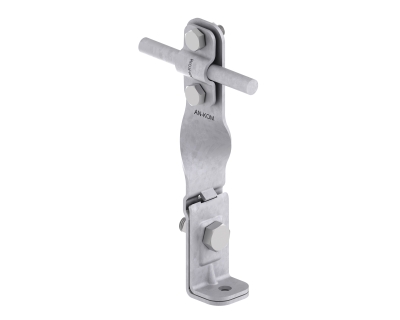

twisted edge wire holder

twisted edge wire holder

Quick assemblyQuick assembly Corrosion resistanceCorrosion resistance Available in coloursAvailable in colours Designed for industrial facilitiesDesigned for industrial facilities Designed for residential facilitiesDesigned for residential facilities

For routing lightning conductors along the edge of the sheet.

Attention! When placing an order, provide the symbol.
conductor
(mm) 		hot galvanised steel copper painted stainless acid-resistant V4A steel
Ø8 symbol
type		 C192056
AN-08B/OG/ PDF 		C372056
AN-08B/CU/ PDF 		C462056
AN-08B/LA/ PDF 		C282056
AN-08B/OH/ PDF

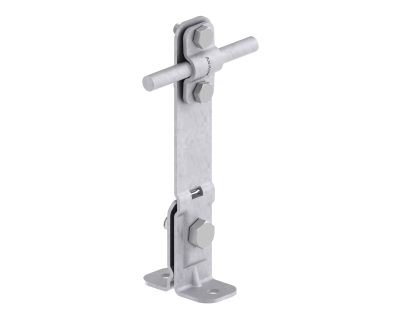

straight seam wire holder

straight seam wire holder

Quick assemblyQuick assembly Corrosion resistanceCorrosion resistance Available in coloursAvailable in colours Designed for industrial facilitiesDesigned for industrial facilities Designed for residential facilitiesDesigned for residential facilities

Installation of wires on roofs covered with sheet metal along the seam.

Attention! When placing an order, provide the symbol.
conductor
(mm) 		hot galvanised steel copper painted stainless acid-resistant V4A steel
Ø8 symbol
type		 C192076
AN-10A/OG/ PDF 		C372076
AN-10A/CU/ PDF 		C462076
AN-10A/LA/ PDF 		C282076
AN-10A/OH/ PDF
straight edge wire holder

straight edge wire holder

Quick assemblyQuick assembly Corrosion resistanceCorrosion resistance Available in coloursAvailable in colours Designed for industrial facilitiesDesigned for industrial facilities Designed for residential facilitiesDesigned for residential facilities

For routing lightning conductors along the edge of the sheet.

Attention! When placing an order, provide the symbol.
conductor
(mm) 		hot galvanised steel copper painted stainless acid-resistant V4A steel
Ø8 symbol
type		 C192080
AN-10B/OG/ PDF 		C372080
AN-10B/CU/ PDF 		C462080
AN-10B/LA/ PDF 		C282080
AN-10B/OH/ PDF
roof top holder

roof top holder

Quick assemblyQuick assembly Corrosion resistanceCorrosion resistance Available in coloursAvailable in colours Designed for industrial facilitiesDesigned for industrial facilities Designed for residential facilitiesDesigned for residential facilities

Installation of the lightning conductor on the roof ridge covered with shingles, sheet metal, roofing felt.

Attention! When placing an order, provide the symbol.
conductor
(mm) 		hot galvanised steel copper painted stainless acid-resistant V4A steel
Ø8 symbol
type		 C192752
AN-11C/OG/-N PDF 		C372100
AN-11C/CU/ PDF 		C462752
AN-11C/LA/-N PDF 		C282100
AN-11C/OH/ PDF
roof top holder

roof top holder

Quick assemblyQuick assembly Corrosion resistanceCorrosion resistance Available in coloursAvailable in colours Designed for industrial facilitiesDesigned for industrial facilities Designed for residential facilitiesDesigned for residential facilities

Installation of the lightning conductor on the roof ridge covered with shingles, sheet metal, roofing felt.

Attention! When placing an order, provide the symbol.
conductor
(mm) 		hot galvanised steel copper painted
Ø8 symbol
type		 C192756
AN-11B/OG/-N PDF 		C372096
AN-11B/CU/ PDF 		C462756
AN-11B/LA/-N PDF
screw-down holder

screw-down holder

Quick assemblyQuick assembly Corrosion resistanceCorrosion resistance UV resistanceUV resistance Available in coloursAvailable in colours Designed for industrial facilitiesDesigned for industrial facilities Designed for residential facilitiesDesigned for residential facilities

Uchwyt uniwersalny do prowadzenia przewodu odgromowego na dachu pokrytym blachą, papą, gontem.

Attention! When placing an order, provide the symbol.
pole colour conductor
(mm) 		hot galvanised steel copper painted stainless acid-resistant V4A steel
RAL
8004 		Ø8 symbol
type		 C192168
AN-11W/OG/ PDF 		C372168
AN-11W/CU/ PDF 		C462168
AN-11W/LA/ PDF 		C282168
AN-11W/OH/ PDF
RAL
9005 		Ø8 symbol
type		 C192172
AN-11W/OG/C PDF 		C372172
AN-11W/CU/C PDF 		C462172
AN-11W/LA/C PDF 		C282172
AN-11W/OH/C PDF
screw-down holder

screw-down holder

Quick assemblyQuick assembly Corrosion resistanceCorrosion resistance UV resistanceUV resistance Available in coloursAvailable in colours Designed for industrial facilitiesDesigned for industrial facilities Designed for residential facilitiesDesigned for residential facilities

Universal holder for routing the ground wire on a roof covered with sheet metal, roofing felt or shingle.

Attention! When placing an order, provide the symbol.
pole colour conductor
(mm) 		hot galvanised steel copper painted stainless acid-resistant V4A steel
RAL
8004 		Ø8 symbol
type		 C192180
AN-11WN/OG/ PDF 		C372180
AN-11WN/CU/ PDF 		C462180
AN-11WN/LA/ PDF 		C282180
AN-11WN/OH/ PDF
RAL
9005 		Ø8 symbol
type		 C192184
AN-11WN/OG/C PDF 		C372184
AN-11WN/CU/C PDF 		C462184
AN-11WN/LA/C PDF 		C282184
AN-11WN/OH/C PDF
RAL
7047 		Ø8 symbol
type		 C192188
AN-11WN/OG/S PDF 		C372188
AN-11WN/CU/S PDF 		C462188
AN-11WN/LA/S PDF 		C282188
AN-11WN/OH/S PDF
steel plate holder

steel plate holder

Quick assemblyQuick assembly Corrosion resistanceCorrosion resistance UV resistanceUV resistance Available in coloursAvailable in colours Designed for industrial facilitiesDesigned for industrial facilities Designed for residential facilitiesDesigned for residential facilities

For mounting the lightning conductor on roofs, parapets, superstructures covered with roofing felt, sheet metal.

Attention! When placing an order, provide the symbol.
pole colour conductor
(mm) 		hot galvanised steel copper painted stainless acid-resistant V4A steel
RAL
8004 		Ø8 symbol
type		 C192648
AN-11P/OG/-N PDF 		C372648
AN-11P/CU/-N PDF 		C462648
AN-11P/LA/-N PDF 		C282648
AN-11P/OH/-N PDF
RAL
9005 		Ø8 symbol
type		 C192652
AN-11P/OG/C-N PDF 		C372652
AN-11P/CU/C-N PDF 		C462652
AN-11P/LA/C-N PDF 		C282652
AN-11P/OH/C-N PDF
RAL
7047 		Ø8 symbol
type		 C192656
AN-11P/OG/S-N PDF 		C372656
AN-11P/CU/S-N PDF 		C462656
AN-11P/LA/S-N PDF 		C282656
AN-11P/OH/S-N PDF
steel plate holder

steel plate holder

Quick assemblyQuick assembly Corrosion resistanceCorrosion resistance UV resistanceUV resistance Available in coloursAvailable in colours Designed for industrial facilitiesDesigned for industrial facilities Designed for residential facilitiesDesigned for residential facilities

For mounting the lightning conductor on roofs, parapets, superstructures covered with roofing felt, sheet metal.

Attention! When placing an order, provide the symbol.
pole colour conductor
(mm) 		hot galvanised steel copper painted stainless acid-resistant V4A steel
RAL
8004 		Ø8 symbol
type		 C192660
AN-11PN/OG/-N PDF 		C372660
AN-11PN/CU/-N PDF 		C462660
AN-11PN/LA/-N PDF 		C282660
AN-11PN/OH/-N PDF
RAL
9005 		Ø8 symbol
type		 C192664
AN-11PN/OG/C-N PDF 		C372664
AN-11PN/CU/C-N PDF 		C462664
AN-11PN/LA/C-N PDF 		C282664
AN-11PN/OH/C-N PDF
RAL
7047 		Ø8 symbol
type		 C192668
AN-11PN/OG/S-N PDF 		C372668
AN-11PN/CU/S-N PDF 		C462668
AN-11PN/LA/S-N PDF 		C282668
AN-11PN/OH/S-N PDF
steel plate holder

steel plate holder

Quick assemblyQuick assembly Corrosion resistanceCorrosion resistance Available in coloursAvailable in colours Designed for industrial facilitiesDesigned for industrial facilities Designed for residential facilitiesDesigned for residential facilities

For mounting the lightning conductor on roofs, parapets, superstructures covered with roofing felt, sheet metal.

Attention! When placing an order, provide the symbol.
conductor
(mm) 		hot galvanised steel copper painted stainless acid-resistant V4A steel
Ø8 symbol
type		 C192644
AN-11G/OG/-N PDF 		C372644
AN-11G/CU/-N PDF 		C462644
AN-11G/LA/-N PDF 		C282644
AN-11G/OH/-N PDF

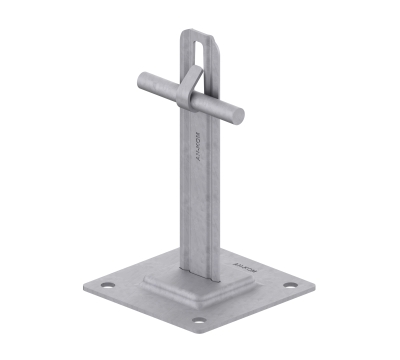

steel plate holder

steel plate holder

Quick assemblyQuick assembly Corrosion resistanceCorrosion resistance Available in coloursAvailable in colours Designed for industrial facilitiesDesigned for industrial facilities Designed for residential facilitiesDesigned for residential facilities

For mounting the lightning conductor on roofs, parapets, superstructures covered with roofing felt, sheet metal.

Attention! When placing an order, provide the symbol.
conductor
(mm) 		hot galvanised steel copper painted
Ø8 symbol
type		 C192640
AN-11A/OG/-N PDF 		C372640
AN-11A/CU/-N PDF 		C462640
AN-11A/LA/-N PDF
MATERIAL:
