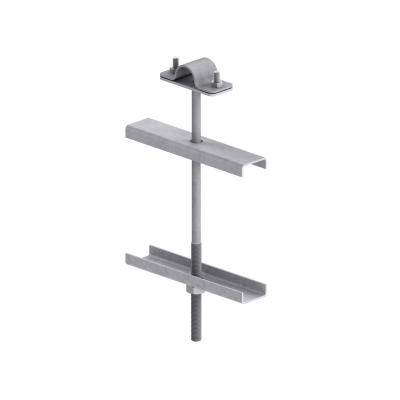

Single cable holder for building cable lines. Thanks to them the cable can be mounted on ŻN poles.
|
L max/min (mm) |
Ømounting range (mm) |
hot galvanised steel | |
|---|---|---|---|
| 180 / 100 | 25 | symbol type |
P199216 AN-139A/OG/  PDF
|
| 180 / 100 | 50 | symbol type |
P199220 AN-139B/OG/ PDF
|

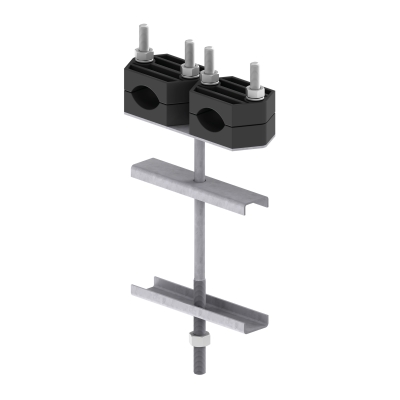

Double plastic cable holder for building cable lines. Thanks to them the cable can be mounted on ŻN poles.
|
L max/min (mm) |
Ømounting range (mm) |
hot galvanised steel | |
|---|---|---|---|
| 180 / 100 | 25 - 45 | symbol type |
P199156 AN-129A/OG/ PDF
|
| 180 / 100 | 45 - 70 | symbol type |
P199168 AN-130A/OG/ PDF
|
| 230 / 150 | 45 - 70 | symbol type |
P199172 AN-130B/OG/ PDF
|
| 310 / 230 | 45 - 70 | symbol type |
P199176 AN-130C/OG/ PDF
|
| 230 / 150 | 25 - 45 | symbol type |
P199160 AN-129B/OG/ PDF
|
| 310 / 230 | 25 - 45 | symbol type |
P199164 AN-129C/OG/ PDF
|

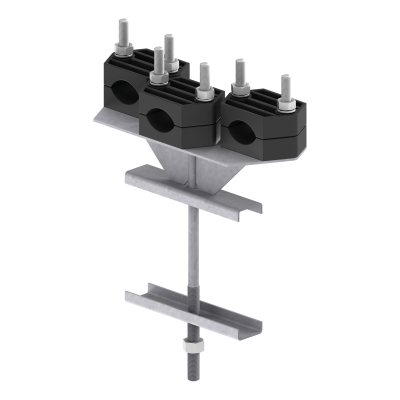

Triple plastic cable holder for building cable lines. Thanks to them the cable can be mounted on ŻN poles.
|
L max/min (mm) |
Ømounting range (mm) |
hot galvanised steel | |
|---|---|---|---|
| 180 / 100 | 45 - 70 | symbol type |
P199192 AN-134A/OG/ PDF
|
| 230 / 150 | 45 - 70 | symbol type |
P199196 AN-134B/OG/ PDF
|
| 310 / 230 | 45 - 70 | symbol type |
P199200 AN-134C/OG/ PDF
|
| 180 / 100 | 25 - 45 | symbol type |
P199180 AN-133A/OG/ PDF
|
| 230 / 150 | 25 - 45 | symbol type |
P199184 AN-133B/OG/ PDF
|
| 310 / 230 | 25 - 45 | symbol type |
P199188 AN-133C/OG/ PDF
|

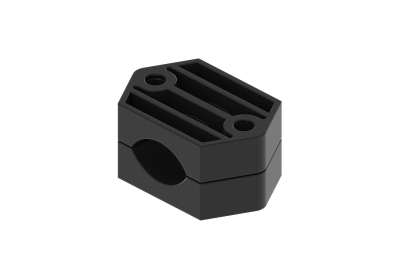

Cable clamps are screwed to flat surfaces.
|
Ømounting range (mm) |
L1 (mm) |
L2 (mm) |
L3 (mm) |
plastic | |
|---|---|---|---|---|---|
| 25 - 45 | 90 | 60 | 64 | symbol type |
P649368 AN-UKB PDF
|
| 45 - 70 | 127 | 98 | 60 | symbol type |
P649372 AN-UKC PDF
|

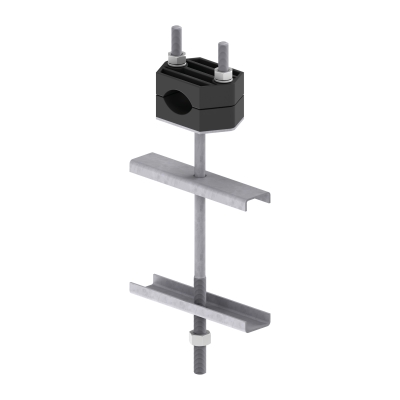

Single cable holder for building cable lines. Thanks to them the cable can be mounted on ŻN poles.
|
L max/min (mm) |
Ømounting range (mm) |
hot galvanised steel | |
|---|---|---|---|
| 180 / 100 | 45 - 70 | symbol type |
P199144 AN-126A/OG/ PDF
|
| 230 / 150 | 45 - 70 | symbol type |
P199148 AN-126B/OG/ PDF
|
| 180 / 100 | 25 - 45 | symbol type |
P199132 AN-125A/OG/ PDF
|
| 230 / 150 | 25 - 45 | symbol type |
P199136 AN-125B/OG/ PDF
|
| 310 / 230 | 45 - 70 | symbol type |
P199152 AN-126C/OG/ PDF
|
| 310 / 230 | 25 - 45 | symbol type |
P199140 AN-125C/OG/ PDF
|

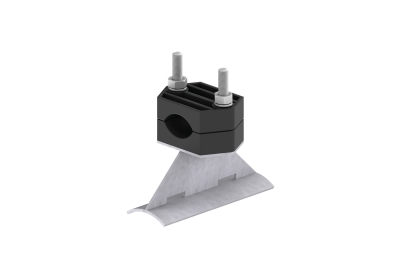

Single plastic cable holder for building cable lines. Thanks to them the cable can be mounted on EPV poles.
|
Ømounting range (mm) |
hot galvanised steel | |
|---|---|---|
| 25 - 45 | symbol type |
P199108 AN-121B/OG/ PDF
|
| 45 - 70 | symbol type |
P199112 AN-121C/OG/ PDF
|

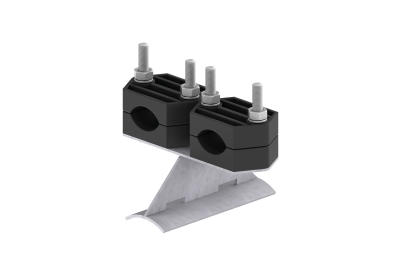

Double plastic cable holder for building cable lines. Thanks to them the cable can be mounted on EPV poles.
|
Ømounting range (mm) |
hot galvanised steel | |
|---|---|---|
| 25 - 45 | symbol type |
P199116 AN-122B/OG/ PDF
|
| 45 - 70 | symbol type |
P199120 AN-122C/OG/ PDF
|

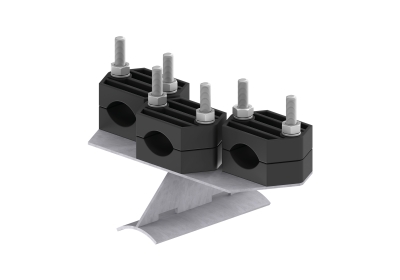

Tripe plastic cable holder for building cable lines. Thanks to them the cable can be mounted on EPV poles.
|
Ømounting range (mm) |
hot galvanised steel | |
|---|---|---|
| 25 - 45 | symbol type |
P199124 AN-123B/OG/ PDF
|
| 45 - 70 | symbol type |
P199128 AN-123C/OG/ PDF
|

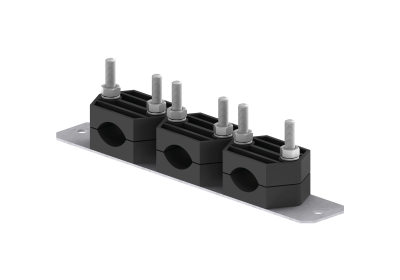

Triple plastic cable holder for building cable lines. Thanks to them the cable can be mounted on flat surfaces.
|
Ømounting range (mm) |
L (mm) |
hot galvanised steel | |
|---|---|---|---|
| 25 - 45 | 350 | symbol type |
P199204 AN-136B/OG/ PDF
|
| 45 - 70 | 450 | symbol type |
P199208 AN-136C/OG/ PDF
|
