The spire is used to protect devices exposed to direct lightning current. It is equipped with a connector for connecting to a ground wire.
|
H (mm) |
Ø1 (mm) |
Ø2 (mm) |
Ø3 (mm) |
conductor (mm) |
hot galvanised steel | |
|---|---|---|---|---|---|---|
| 1000 | 10 | --- | --- | Ø8 | symbol type |
H196037 AN-80AI/OG/  PDF
|
| 1500 | 10 | 16 | --- | Ø8 | symbol type |
H196041 AN-80BI/OG/ PDF
|
| 2000 | 10 | 16 | --- | Ø8 | symbol type |
H196045 AN-80CI/OG/ PDF
|
| 2500 | 10 | --- | 18 | Ø8 | symbol type |
H196065 AN-80HI/OG/ PDF
|
| 3000 | 10 | 16 | 18 | Ø8 | symbol type |
H196057 AN-80FI/OG/ PDF
|
| 3500 | 10 | 16 | 18 | Ø8 | symbol type |
H196077 AN-80PI/OG/ PDF
|
| 4000 | 10 | 16 | 18 | Ø8 | symbol type |
H196061 AN-80GI/OG/ PDF
|
The holder is used for mounting rod spiers.
|
Ø1 (mm) |
L (mm) |
screws | hot galvanised steel | |
|---|---|---|---|---|
| 10 | 100 | M8x30 | symbol type |
J196664 AN-84L10/OG/ PDF
|
| 16 | 100 | M8x30 | symbol type |
J196668 AN-84L16/OG/ PDF
|
| 18 | 100 | M8x30 | symbol type |
J196672 AN-84L18/OG/ PDF
|
| 10 | 150 | M8x30 | symbol type |
J196676 AN-84M10/OG/ PDF
|
| 16 | 150 | M8x30 | symbol type |
J196680 AN-84M16/OG/ PDF
|
| 18 | 150 | M8x30 | symbol type |
J196684 AN-84M18/OG/ PDF
|

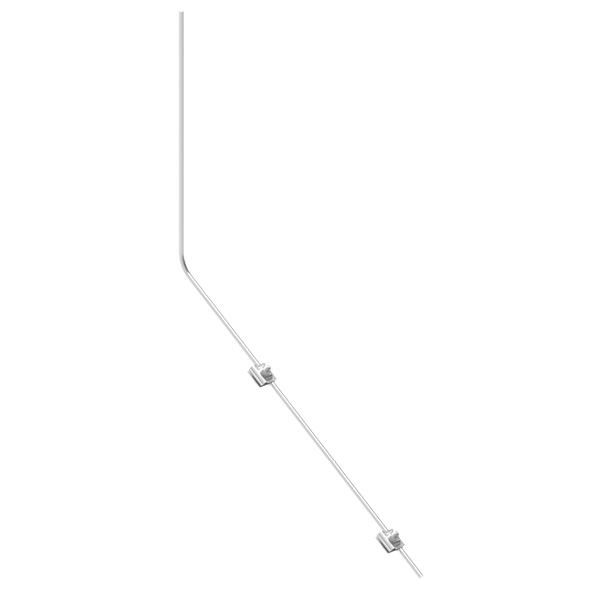

The spire for protection of PV installations. Mounted to the substructure. It is supplied with two holders. The spire creates a protected space for lightning protection, e.g. of photovoltaic cells.
|
conductor (mm) |
aluminium | |
|---|---|---|
| Ø8 | symbol type |
H926125 AN-90L/AL/ PDF
|
It is used for lightning protection of metal elements on the roof or devices such as PV panels, chimneys, air conditioners, skylights.
Mounted on the ridge tile with two handles. Equipped with a connector for connecting to the air terminal grid.
For safe installation, always make sure that the ridge tiles are permanently screwed to the ridge batten.
|
H (mm) |
K (mm) |
Ø1 / Ø2 (mm) |
aluminium | |
|---|---|---|---|---|
| 1000 | 245 - 415 | 10 / --- | symbol type |
H926109 AN-90I/AL/ PDF
|
| 1500 | 245 - 415 | 10 / 16 | symbol type |
H926085 AN-90H/AL/ PDF
|
The roof top spire is used for lightning protection of chimneys, PV panels, etc. on the roofs of buildings. Mounted on the roof ridge by screwing. Vertical spire made of aluminum, base made of stainless steel. The spire comes with a connector for connection to the ground wire.
|
H (mm) |
Ø1 / Ø2 (mm) |
aluminium | |
|---|---|---|---|
| 1000 | 10 / --- | symbol type |
H926097 AN-90J/AL/ PDF
|
| 1500 | 10 / 16 | symbol type |
H926105 AN-90K/AL/ PDF
|
Implementation of lightning protection of chimneys, superstructures and other devices on the roofs of buildings. There are mounting holderspermanently welded into the spiers and a connector for connecting to the ground wire.
|
H (mm) |
Ø1 (mm) |
Ø2 (mm) |
Ø3 (mm) |
L (mm) |
conductor (mm) |
hot galvanised steel | stainless acid-resistant V4A steel | |
|---|---|---|---|---|---|---|---|---|
| 1000 | 10 | --- | --- | 160 | Ø8 | symbol type |
H196388 AN-90A/OG/ PDF
|
H286388 AN-90A/OH/ PDF
|
| 1500 | 10 | 16 | --- | 160 | Ø8 | symbol type |
H196392 AN-90B/OG/ PDF
|
H286392 AN-90B/OH/ PDF
|
| 2000 | 10 | 16 | --- | 240 | Ø8 | symbol type |
H196396 AN-90C/OG/ PDF
|
H286396 AN-90C/OH/ PDF
|
| 2500 | 10 | 16 | --- | 240 | Ø8 | symbol type |
H196400 AN-90D/OG/ PDF
|
H286400 AN-90D/OH/ PDF
|
| 3000 | 10 | 16 | 18 | 320 | Ø8 | symbol type |
H196404 AN-90E/OG/ PDF
|
H286404 AN-90E/OH/ PDF
|

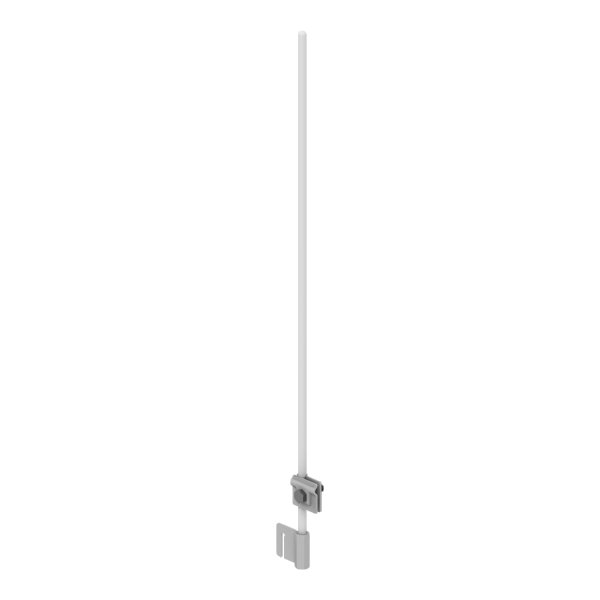

The ridge tile spire is delivered complete with an adapter and a connector that allows mounting to all AN-KOM ridge tile holders. These spiers are used to protect photovoltaic cells, solar panels, etc.
|
L (mm) |
conductor (mm) |
aluminium alloy | |
|---|---|---|---|
| 1000 | Ø8 | symbol type |
H926420 AN-90G/AL/ PDF
|
Lightning protection of a set of devices (ventilation and air conditioning units) located on the facilities. It is mounted with holders (ordered separately) directly to protected devices or railings.
*F (kN) - minimum tensile load of the base
|
H (mm) |
wind resistance (km/h) |
F* (kN) |
Ø1 / Ø2 / Ø3 / Ø4 (mm) |
cable dimension (mm) |
hot galvanised steel | |
|---|---|---|---|---|---|---|
| 4000 | 261 | 6 | 10 / 16 / --- / 33,7 | Ø8 | symbol type |
H196188 AN-84A/OG/ PDF
|
| 5000 | 209 | 6 | 10 / 16 / 33,7 / 33,7 | Ø8 | symbol type |
H196192 AN-84B/OG/ PDF
|
| 6000 | 174 | 6 | 10 / 16 / 33,7 / 33,7 | Ø8 | symbol type |
H196196 AN-84C/OG/ PDF
|
