H196160

Print Download Add to clipboardAdded to clipboard Back
MATERIAL:
hot galvanised steel
DESCRIPTION:

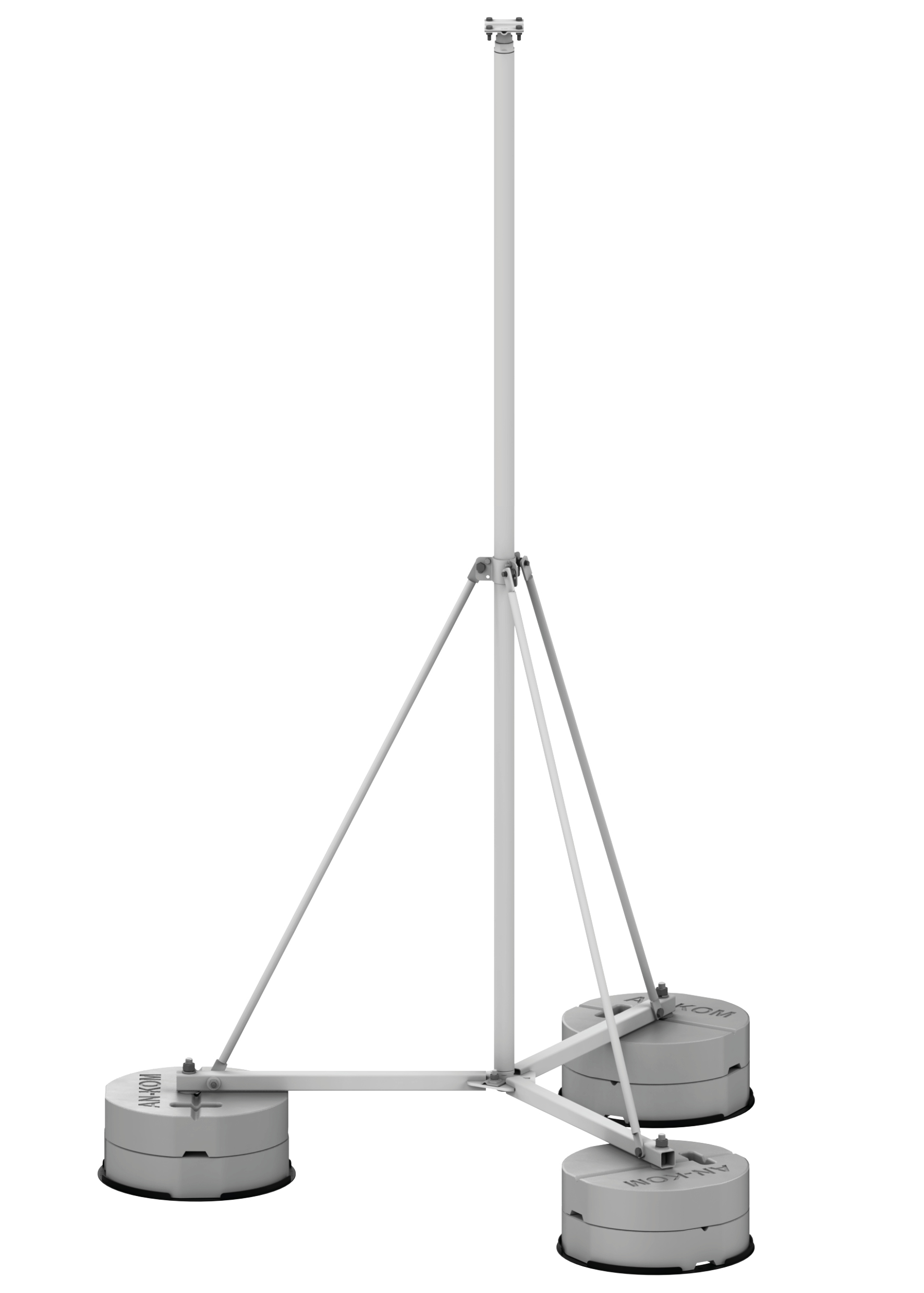

Free-standing mesh cage mast on a triple base (tripod). It is used to build horizontal air terminals (protective cages).
Line span between two masts of the same construction: up to 10m.

symbol
type
H196160
AN-82A/OG/
H
(mm)
3000
base weight
(kg)
3 x 36

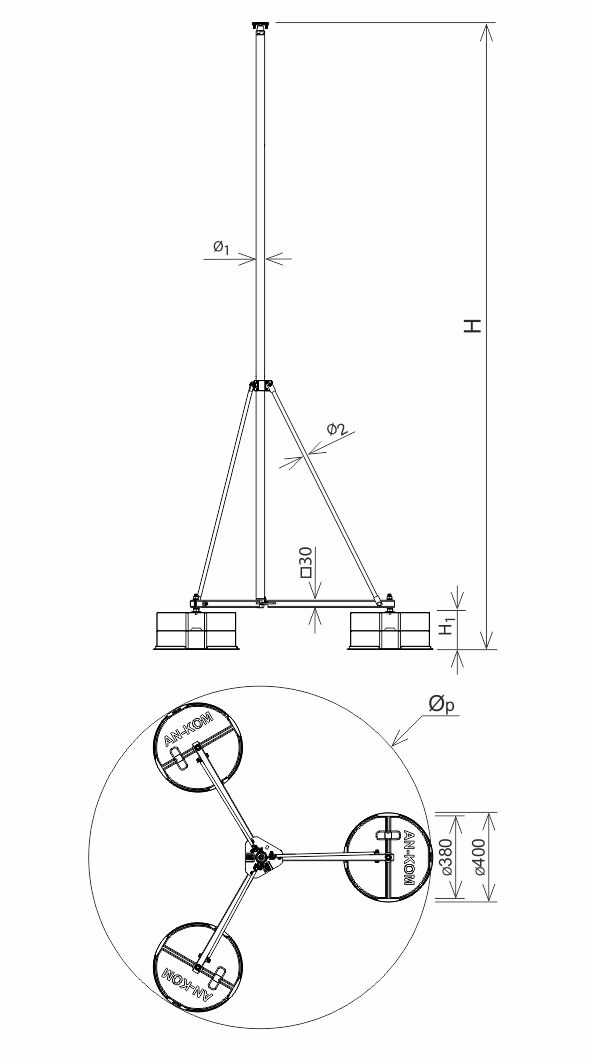

Ø1 / Ø2 / Ø3 / Ø4
(mm)
33,7 / --- / --- / 12
wind resistance
(km/h)
215
conductor
(mm)
Ø8
H1
(mm)
70
material hot galvanised steel
