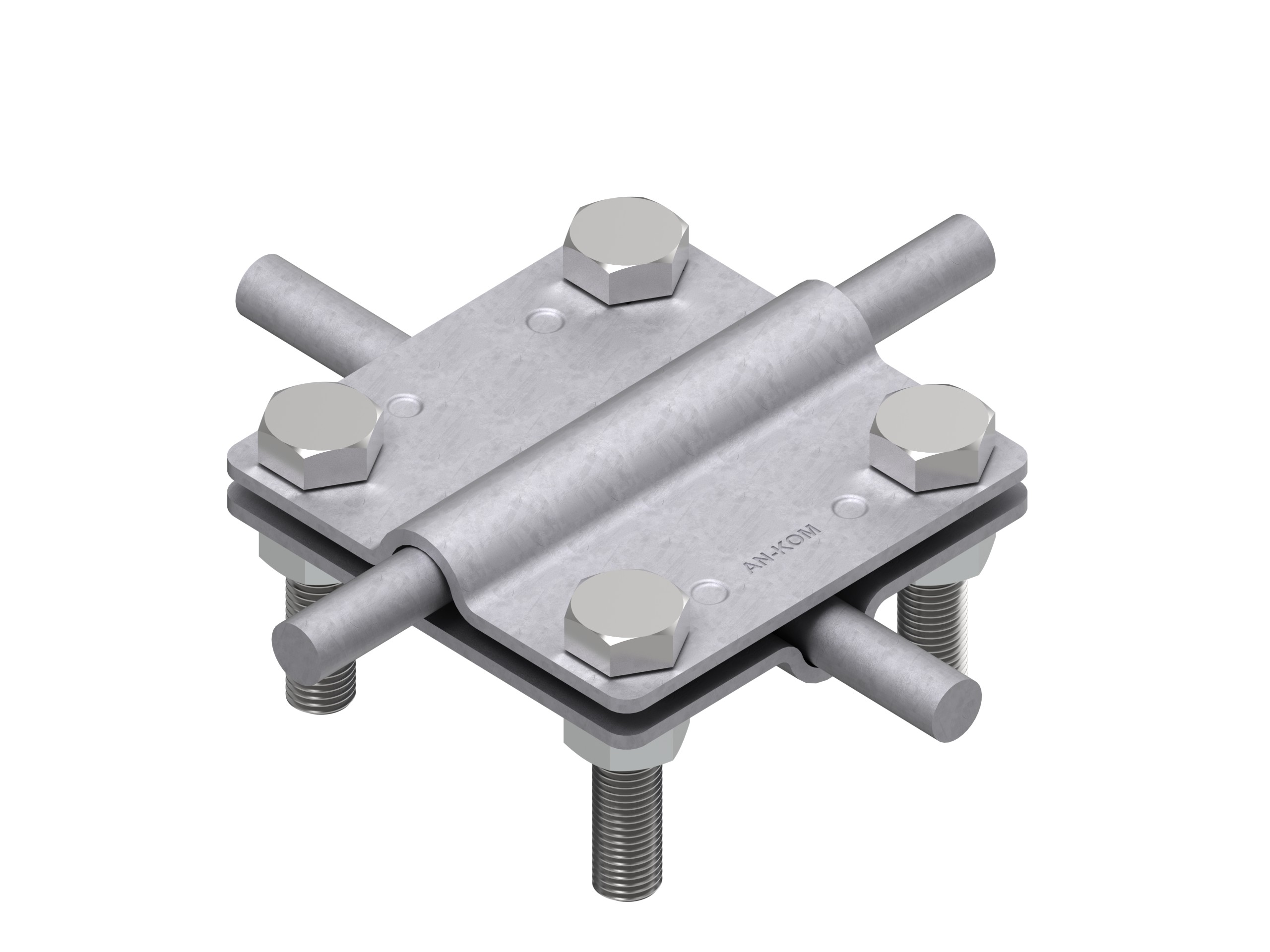

CLAMPS CROSS 2 plates cross clamps
A191056
Material:
Information:
  • description
  • technical data
  • downloadable
  • related

Connection of round conductors in a cross, parallel and T-shaped configuration.

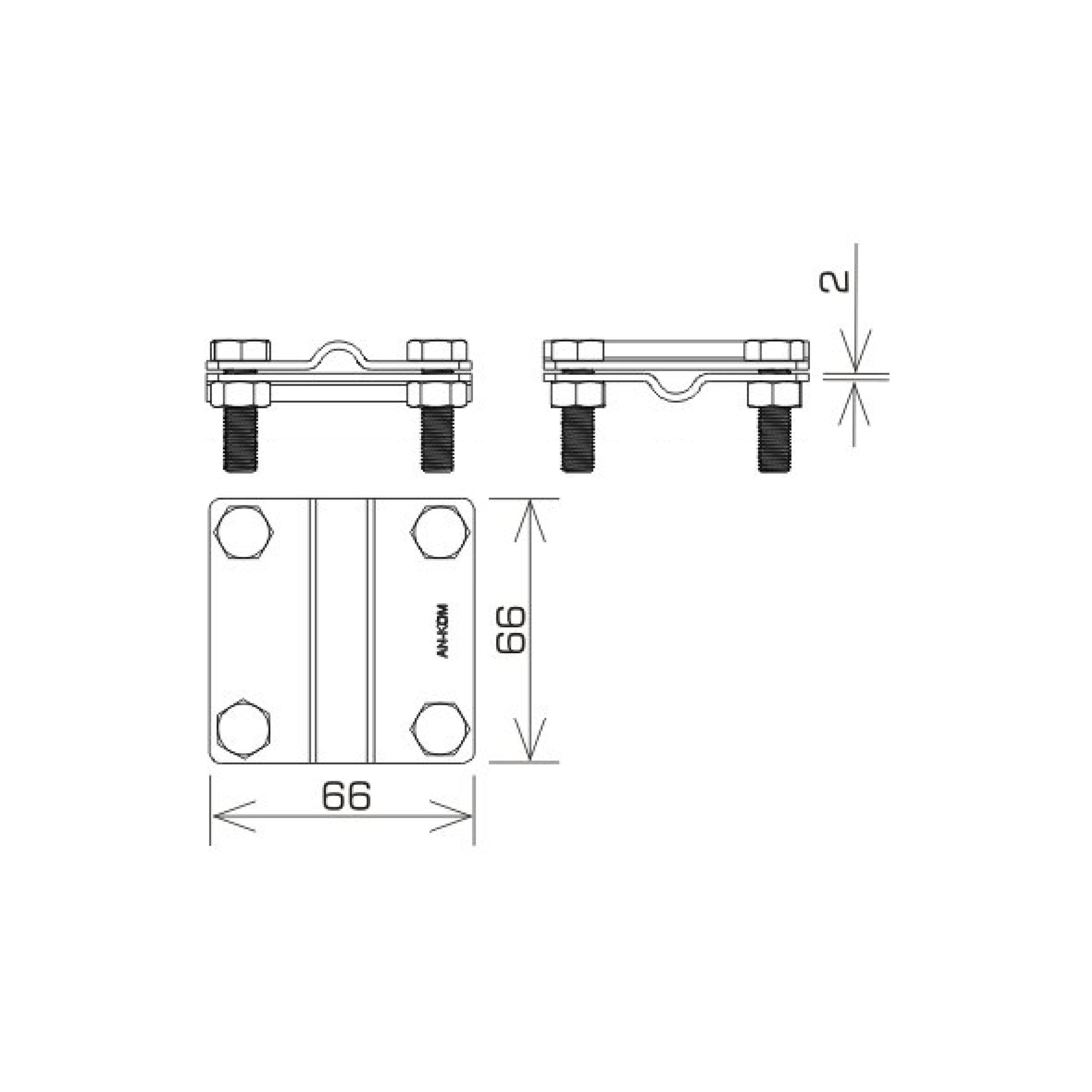

symbol
type		 A191056
AN-03Z/OG/
screws M8 x 40
conductors dimensions Ø8 / Ø8
material hot galvanised steel
Technical data sheet
File size 189.56 KB
Conductors aluminium conductor
L927520
AN-AL8D (AlMgSi)
Accessories acid-free pail of technical vaseline
N828524
AN-90W-02
