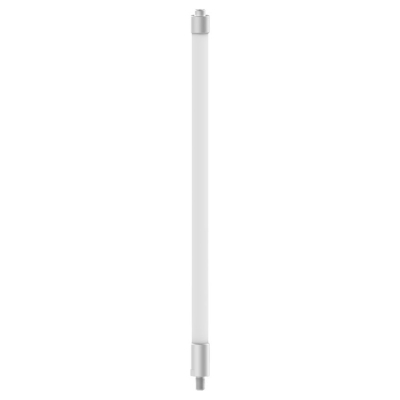

The vertical isolating rod is made of plastic with very good electrical and mechanical properties. Steel fittings allow the installation of a 500 or 1000 mm spire and a supporting pipe.
|
L (mm) |
L1 (mm) |
stainless acid-resistant V4A steel | |
|---|---|---|---|
| 1035 | 930 | symbol type |
J286508 AN-83F/OH/  PDF
|
| 1535 | 1435 | symbol type |
J286504 AN-83E/OH/ PDF
|
The horizontal isolating rod is made of plastic with very good electrical and mechanical properties. Steel fittings allow the installation of a 500 or 1000 mm spire and a supporting pipe.
|
L (mm) |
L1 (mm) |
stainless acid-resistant V4A steel | |
|---|---|---|---|
| 790 | 690 | symbol type |
J286512 AN-83G/OH/ PDF
|
| 1040 | 940 | symbol type |
J286516 AN-83H/OH/ PDF
|
| 1540 | 1440 | symbol type |
J286520 AN-83I/OH/ PDF
|
| 2040 | 1940 | symbol type |
J286524 AN-83J/OH/ PDF
|
