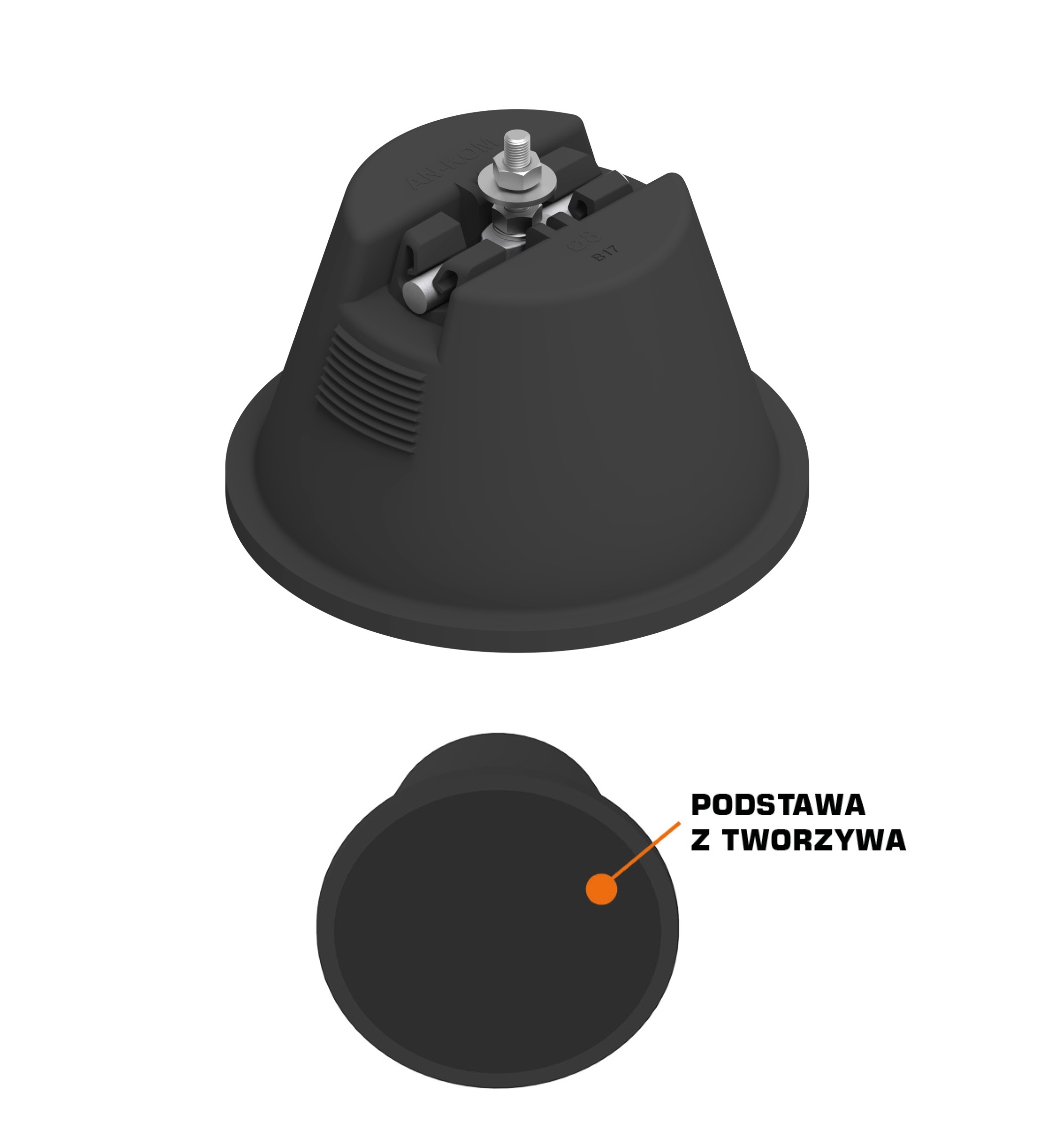

Concrete holder in plastic with a plastic bottom is used to build an air terminal grid on flat roofs. Made of polypropylene - PP (frost resistant) with additives protecting against UV radiation. The bottom of the holder is made of ABS plastic which enables gluing the holder to the roofing. The support is filled with a frost-resistant cement mortar.
PURPOSE: roofs covered with membrane or roofing felt
ASSEMBLY:
- gluing to roofing felt - adhesive mass e.g. N828540
- gluing to the roofing membrane type - with the adhesive recommended by the membrane manufacturer or after agreement with the roofing manufacturer, adhesive for PVC membranes with the symbol N828576
BOTTOM: plastic
|
conductor (mm) |
weight (kg) |
plastic/concrete | |
|---|---|---|---|
| Ø8 | ~ 1 | symbol type |
B931516 AN-11K  PDF
|
Concrete holder in plastic with a concrete bottom is used to build an air terminal grid on flat roofs. Made of polypropylene - PP (frost resistant) with additives protecting against UV radiation. The support is filled with a frost-resistant cement mortar.
PURPOSE: roofs covered with roofing felt
ASSEMBLY:
- gluing to the roofing - with adhesive mass, e.g. N828540
BOTTOM: concrete
|
conductor (mm) |
weight | plastic/concrete | |
|---|---|---|---|
| Ø8 | ~ 1 | symbol type |
B931504 AN-11D PDF
|

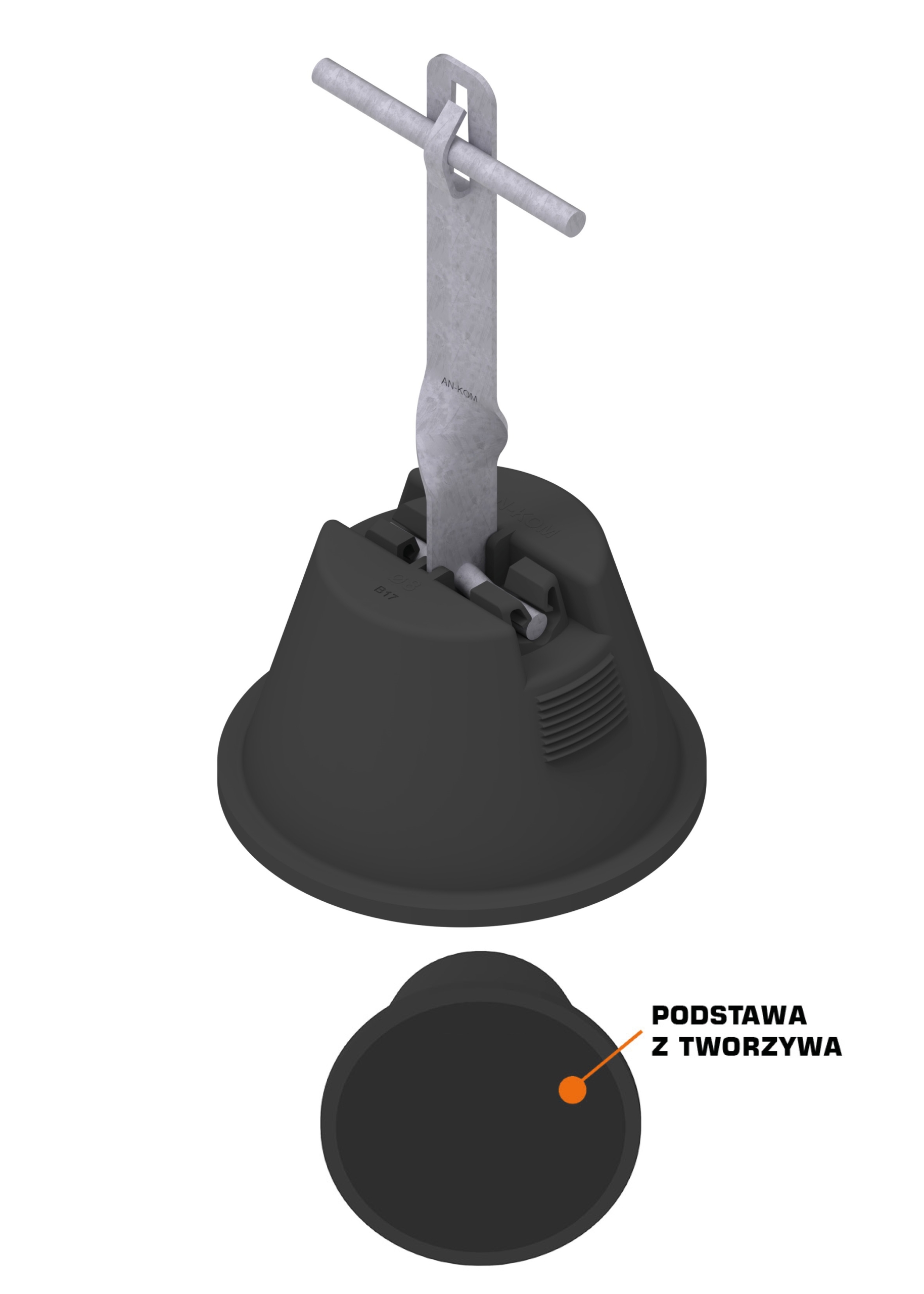

Concrete holder in plastic with a plastic bottom is used to build an air terminal grid on flat roofs. Made of polypropylene - PP (frost resistant) with additives protecting against UV radiation. The bottom of the holder is made of ABS plastic which enables gluing the holder to the roofing. The support is filled with a frost-resistant cement mortar.
PURPOSE: roofs covered with membrane or roofing felt
ASSEMBLY:
- gluing to roofing felt - adhesive mass e.g. N828540
- gluing to the roofing membrane type - with the adhesive recommended by the membrane manufacturer or after agreement with the roofing manufacturer, adhesive for PVC membranes with the symbol N828576
BOTTOM: plastic
|
conductor (mm) |
weight (kg) |
plastic/concrete | |
|---|---|---|---|
| Ø8 | ~ 1,55 | symbol type |
B931588 AN-11KW PDF
|
Concrete holder in plastic with a rectangular plastic base is used to build an air terminal grid on flat roofs. Made of polyethylene - PE (resistant to frost) with additives protecting against UV radiation. The base of the holder is made of ABS plastic which enables gluing the bracket to the roofing. The support is filled with a frost-resistant cement mortar.
PURPOSE:flat roofs covered with membrane or roofing felt
ASSEMBLY:
- gluing to roofing felt - with adhesive, e.g. N828540
- gluing to the membrane type roofing - with the adhesive recommended by the membrane manufacturer or after agreement with the roofing manufacturer with the adhesive for PVC membranes with the symbol N828576
BOTTOM: plastic
|
conductor (mm) |
weight (kg) |
plastic/concrete | |
|---|---|---|---|
| Ø8 | ~ 1 | symbol type |
B931532 AN-11S PDF
|
Concrete holder in plastic with a plastic bottom is used to build an air terminal grid on flat roofs. Made of polypropylene - PP (frost resistant) with additives protecting against UV radiation. The bottom of the holder is made of ABS plastic which enables gluing the bracket to the roofing. The support is filled with a frost-resistant cement mortar.
PURPOSE: roofs covered with membrane or roofing felt
ASSEMBLY:
- gluing to roofing felt - with adhesive, e.g. N828540
- gluing to the membrane type roofing - with the adhesive recommended by the membrane manufacturer or, after consultation with the roofing manufacturer, with the adhesive for PVC membranes with the symbol N828576
BOTTOM: plastic
|
H (mm) |
Hd (mm) |
conductor (mm) |
weight (kg) |
plastic/concrete | |
|---|---|---|---|---|---|
| 250 | 220 | Ø8 | ~ 1 | symbol type |
B931524 AN-11M PDF
|
| 175 | 150 | Ø8 | ~ 1 | symbol type |
B931548 AN-12M PDF
|
Concrete holder in plastic with a plastic bottom is used to build an air terminal grid on flat roofs. Made of polypropylene - PP (frost resistant) with additives protecting against UV radiation. The bottom of the holder is made of ABS plastic which enables gluing the bracket to the roofing. The support is filled with a frost-resistant cement mortar.
PURPOSE: roofs covered with membrane or roofing felt
ASSEMBLY:
- gluing to roofing felt - with adhesive, e.g. N828540
- gluing to the membrane type roofing - with the adhesive recommended by the membrane manufacturer or, after consultation with the roofing manufacturer, with the adhesive for PVC membranes with the symbol N828576
BOTTOM: plastic
|
H (mm) |
Hd (mm) |
conductor (mm) |
weight (kg) |
plastic/concrete | |
|---|---|---|---|---|---|
| 250 | 220 | Ø8 | ~ 1 | symbol type |
B931528 AN-11N PDF
|
| 175 | 150 | Ø8 | ~ 1 | symbol type |
B931552 AN-12N PDF
|

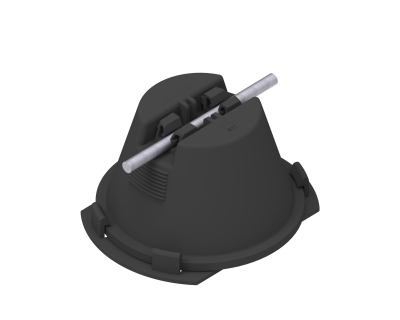

Concrete holder in plastic with a rotating base is used to build an air terminal grid on flat roofs. After attaching the stand and inserting the holder into it, it is possible to rotate the handle in any direction. Made of polypropylene - PP (frost resistant) with additives protecting against UV radiation. The holder is filled with a frost-resistant cement mortar.
PURPOSE: flat roofs covered with membrane, roofing felt and sheet metal
|
conductor (mm) |
weight (kg) |
plastic/concrete | |
|---|---|---|---|
| Ø8 | ~ 1 | symbol type |
B931508 AN-11F PDF
|
Concrete holder in plastic with a plastic bottom is used to build an air terminal grid on flat roofs. Made of polypropylene - PP (frost resistant) with additives protecting against UV radiation. The bottom of the holder is made of ABS plastic which enables gluing the bracket to the roofing. The support is filled with a frost-resistant cement mortar.
PURPOSE: roofs covered with membrane or roofing felt
ASSEMBLY:
- gluing to roofing felt - with adhesive, e.g. N828540
- gluing to the membrane type roofing - with the adhesive recommended by the membrane manufacturer or, after consultation with the roofing manufacturer, with the adhesive for PVC membranes with the symbol N828576
BOTTOM: plastic
|
conductor (mm) |
weight (kg) |
plastic/concrete | |
|---|---|---|---|
| Ø8 | ~ 1 | symbol type |
B931520 AN-11L PDF
|
PURPOSE:flat roofs covered with roofing felt
ASSEMBLY:
- gluing to the roofing - with an adhesive mass, e.g. N828540
BOTTOM: concrete
|
conductor (mm) |
weight (kg) |
concrete/steel | |
|---|---|---|---|
| Ø8 | ~ 1 | symbol type |
B951512 AN-11H PDF
|

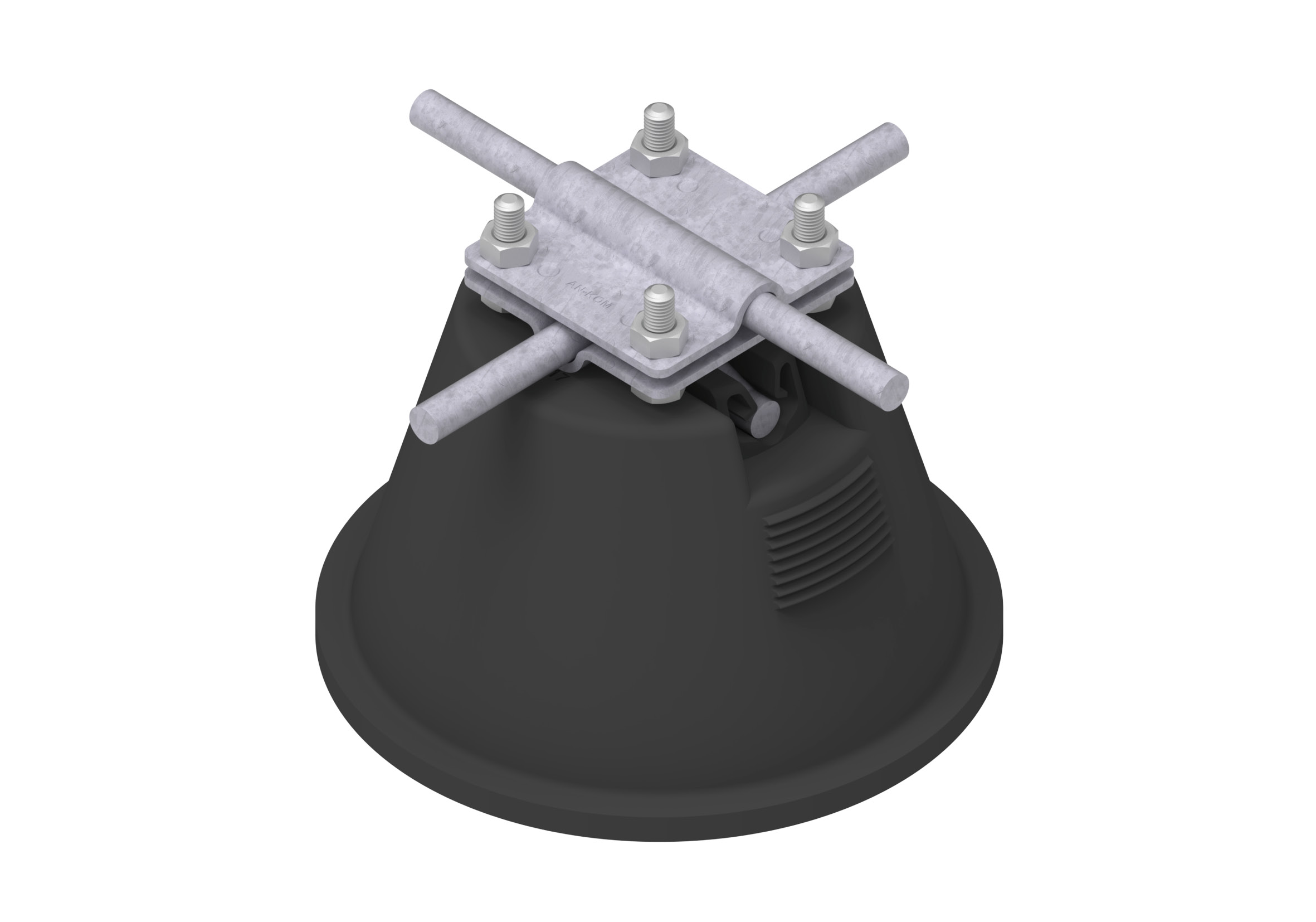

Adapter for conductor in combination with concrete holder from the AN-KOM offer is used to run a circular conductor Ø10.
|
conductor (mm) |
holders | plastic | |
|---|---|---|---|
| Ø10 |
B931504 B931516 B931588 |
symbol type |
B641540 AN-12A PDF
|
!!! ATTENTION!!!
The holder is made of PP (polypropylene), which is not suitable for gluing.
The plastic bottom is used to attach the plastic concrete holders listed in the table "to the brackets". Made of polypropylene - PP (frost resistant) with additives protecting against UV radiation.
BOTTOM ASSEMBLY:
ROOFING FELT, MEMBRANE
- strap welding
(100mm x 300mm)
covering material
| holders | plastic | |
|---|---|---|
|
B931504, B931516 B931588, B931524 B931528, B931548 B931552, B931520 |
symbol type |
B641536 AN-11Z PDF
|
!!! ATTENTION!!!
The holder is made of PP (polypropylene), which is not suitable for gluing.
Plastic holder with a square bottom for routing a round conductor on flat roofs.
PURPOSE: flat roofs covered with roofing felt.
 |
ASSEMBLING THE BOTTOM: ROOFING FELT, MEMBRANE - strip welding (100mm x 200mm) plastic |
|
conductor (mm) |
plastic | |
|---|---|---|
| Ø8 | symbol type |
B641596 AN-12P-N PDF
|
Adapter for mounting cable beds. In combination with a concrete holder, e.g. B931516, B931504 or B931588, it creates a ready product for mounting conductor beds on flat roofs of industrial facilities.
| holders | hot galvanised steel | |
|---|---|---|
|
B931516, B931504 B931508, B931588 |
symbol type |
B191592 AN-12LL/OG/-N PDF
|
Concrete holder in plastic with a plastic base is used for mounting conductor trays on flat roofs. Made of polypropylene - PP (frost resistant) with additives protecting against UV radiation. The base of the bracket is made of ABS plastic which enables gluing the bracket to the roofing. The support is filled with a frost-resistant cement mortar.
PURPOSE: roofs covered with membrane or roofing felt
INSTALLATION:
- gluing to roofing felt - with adhesive mass, e.g. N828540
- gluing to the membrane type roofing - with the adhesive recommended by the membrane manufacturer or after agreement with the roofing manufacturer with the adhesive for PVC membranes with the symbol N828576
BOTTOM: plastic
|
weight (kg) |
plastic/concrete | |
|---|---|---|
| ~ 1 | symbol type |
B931592 AN-12L-N PDF
|
