The holder for mounting the wall spire to a round profile, e.g. a railing.
|
Ø1 / Ø2 (mm) |
L1 / L2 (mm) |
screws | hot galvanised steel | |
|---|---|---|---|---|
| 30 - 40 / 30 - 40 | 90 / 90 | M10 x 35 | symbol type |
H196304 AN-88N/OG/  PDF
|
| 40 - 50 / 30 - 40 | 90 / 102 | M10 x 35 | symbol type |
H196300 AN-88M/OG/ PDF
|
| 50 - 60 / 30 - 40 | 90 / 120 | M10 x 35 | symbol type |
H196296 AN-88L/OG/ PDF
|
The holder is used for mounting rod spiers.
|
Ø1 (mm) |
L (mm) |
screws | hot galvanised steel | |
|---|---|---|---|---|
| 16 | 100 | M8x30 | symbol type |
J196668 AN-84L16/OG/ PDF
|
| 10 | 100 | M8x30 | symbol type |
J196664 AN-84L10/OG/ PDF
|
| 18 | 100 | M8x30 | symbol type |
J196672 AN-84L18/OG/ PDF
|
| 10 | 150 | M8x30 | symbol type |
J196676 AN-84M10/OG/ PDF
|
| 16 | 150 | M8x30 | symbol type |
J196680 AN-84M16/OG/ PDF
|
| 18 | 150 | M8x30 | symbol type |
J196684 AN-84M18/OG/ PDF
|

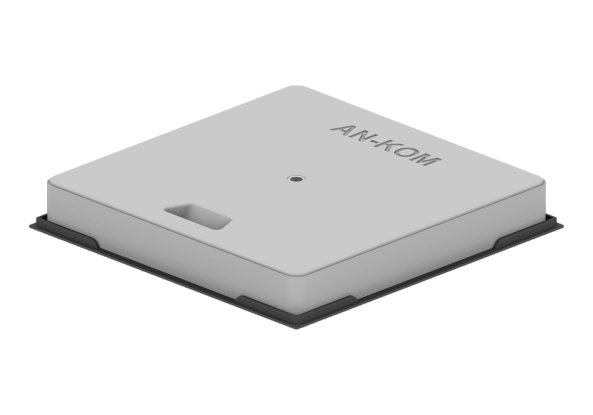

Lightning protection masts base.
| masts |
weight (kg) |
concrete | |
|---|---|---|---|
|
H196004, H196012 H196020 |
15 | symbol type |
H956084 AN-80KL PDF
|

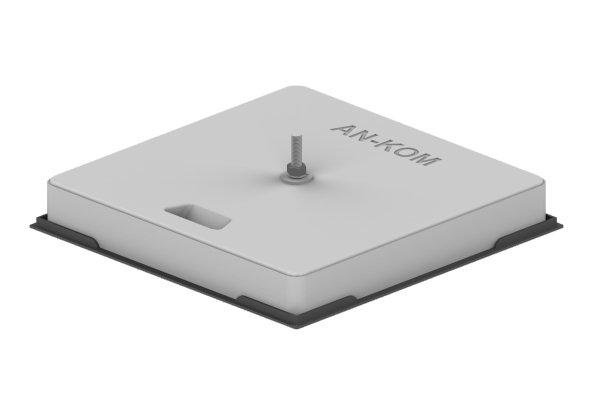

Lightning protection masts base.
| masts |
weight (kg) |
concrete | |
|---|---|---|---|
|
H196120, H196124, H196128 H196132, H196136, H196144 H196148, H196156, H196160 H196164, H196168, H196176 H196180, H196184, H196216 H196220, H196224, H196228 |
36 | symbol type |
H956088 AN-80L PDF
|
Lightning protection masts base.
| masts |
weight (kg) |
concrete | |
|---|---|---|---|
|
H196028, H196036, H196060 H196044, H196104, H196052 |
36 | symbol type |
H956092 AN-80ML PDF
|
Lightning protection masts base.
| masts |
weight (kg) |
concrete | |
|---|---|---|---|
| H196140, H196172 | 51 | symbol type |
H956100 AN-80NM PDF
|
Adjusting screw for free-standing single lightning protection masts.
| masts |
range (°) |
hot galvanised steel | |
|---|---|---|---|
|
H196004, H196012, H196020 H196028, H196036, H196060 H196044, H196104, H196052 H196008, H196016, H196024 H196064, H196048, H196108 H196056 |
from 0° to 6° | symbol type |
H196112 AN-80R/OG/ PDF
|
A set of adjusting screws for free-standing lightning protection masts on a tripod.
| masts |
range (°) |
hot galvanised steel | |
|---|---|---|---|
|
H196120, H196124, H196128 H196132, H196136, H196140 H196156, H196160, H196164 H196168, H196172, H196176 H196180, H196184 |
from 0° to 6° | symbol type |
H196152 AN-81R/OG/ PDF
|
For mounting the support pipe to flat surfaces, walls, selected BAKS profiles.
|
Ø (mm) |
L (mm) |
L1 (mm) |
screws | hot galvanised steel | |
|---|---|---|---|---|---|
| 30 - 40 | 150 | 90 | M10 x 35 | symbol type |
J196608 AN-84L40/OG/ PDF
|
| 50 - 60 | 150 | 120 | M10 x 35 | symbol type |
J196616 AN-84L60/OG/ PDF
|
| 40 - 50 | 150 | 102 | M10 x 35 | symbol type |
J196612 AN-84L50/OG/ PDF
|
| 30 - 40 | 250 | 90 | M10 x 35 | symbol type |
J196620 AN-84M40/OG/ PDF
|
| 50 - 60 | 250 | 120 | M10 x 35 | symbol type |
J196628 AN-84M60/OG/ PDF
|
| 40 - 50 | 250 | 102 | M10 x 35 | symbol type |
J196624 AN-84M50/OG/ PDF
|
