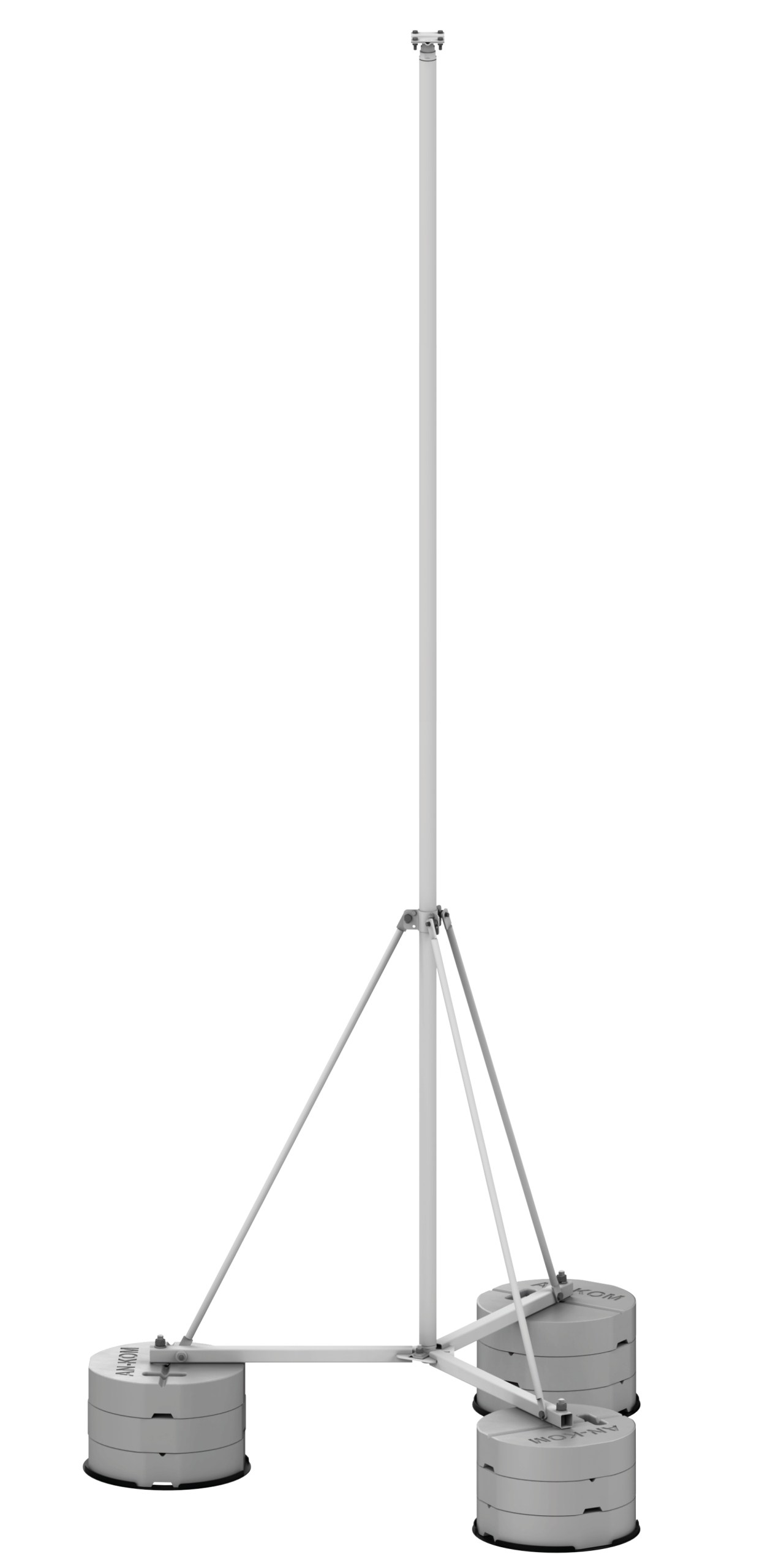

Free-standing mesh cage mast on a triple base (tripod). It is used to build horizontal air terminals (protective cages).
Line span between two masts of the same construction: up to 10m.
| symbol type |
H196172 AN-82D/OG/ |
| H (mm) |
6000 |
| base weight (kg) |
3 x 51 |
| Ø1 / Ø2 / Ø3 / Ø4 (mm) |
42,4 / --- / --- / 16 |
| wind resistance (km/h) |
120 |
| conductor (mm) |
Ø8 |
| H1 (mm) |
125 |
| material | hot galvanised steel |
