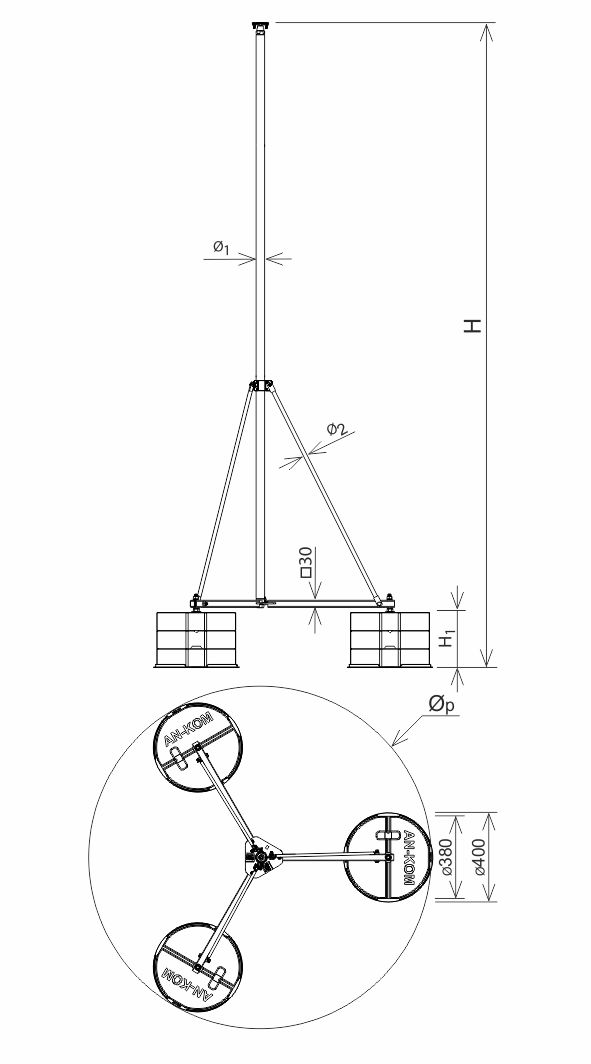

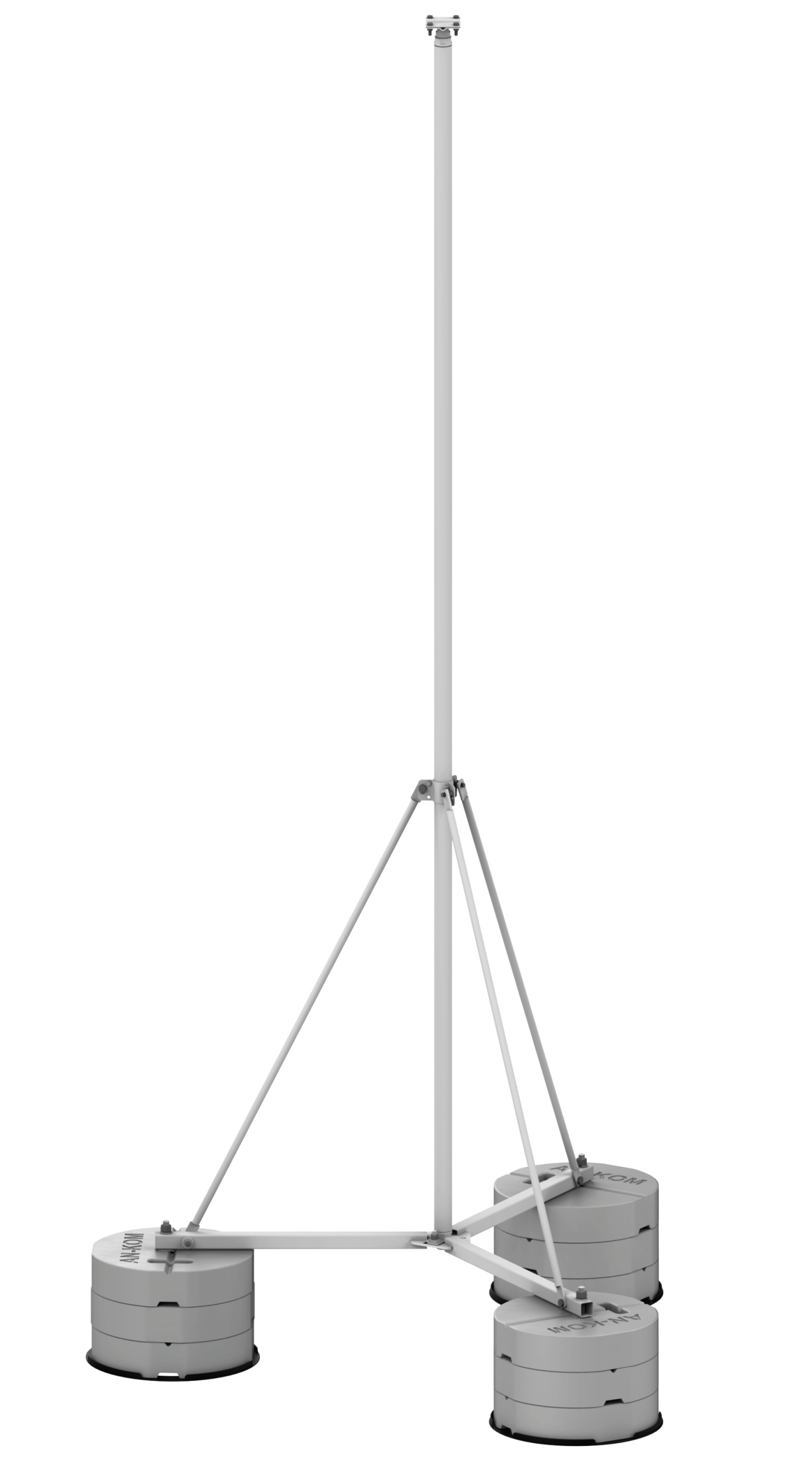

Free-standing mesh cage mast on a triple base (tripod). It is used to build horizontal air terminals (protective cages).
Line span between two masts of the same construction: up to 10m.
| symbol type |
H196168 AN-82C/OG/ |
| H (mm) |
5000 |
| base weight (kg) |
3 x 36 |
| Ø1 / Ø2 / Ø3 / Ø4 (mm) |
33,7 / 33,7 / --- / 16 |
| wind resistance (km/h) |
138 |
| conductor (mm) |
Ø8 |
| H1 (mm) |
70 |
| material | hot galvanised steel |
