HOLDERS TAPE CONDUCTOR hammered
C462280
Material:
Add to clipboardAdded to clipboard Print Download
Information:
  • description
  • technical data

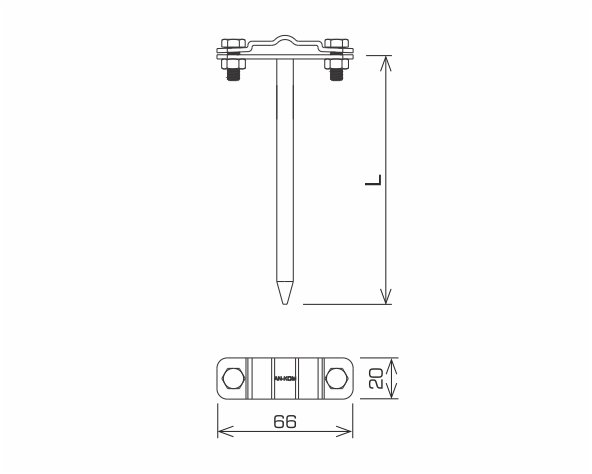

For routing flat conductors (tape conductor holder) along the wall or foundation. The holder designed for wooden constructions. Installation is done by hammering the handle into the ground.

*B – maximum tape conductor holder width
The holder is also used to mount the round conductor.

AVAILABLE COLOURS:
RAL 3011 - red, RAL 8017 - dark brown, RAL 7016 - anthracite grey,
RAL 7026 - granite grey, RAL 8004 - brown (brick colour), RAL 9005 - black
symbol
type		 C462280
AN-32A/LA/
L
(mm)		 120
conductor
(mm)		 B* to 30
or
Ø8
material painted
