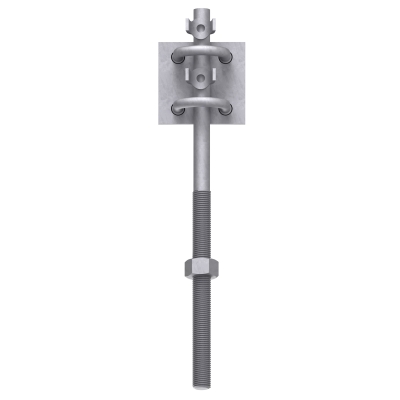

Bow screws. In combination with tensioning holders, they allow you to build tensioning installations.
|
L (mm) |
M (thread) |
hot galvanised steel | |
|---|---|---|---|
| 250 | 12 | symbol type |
C192204 AN-30A/OG/  PDF
|
| 250 | 10 | symbol type |
C192208 AN-30B/OG/ PDF
|

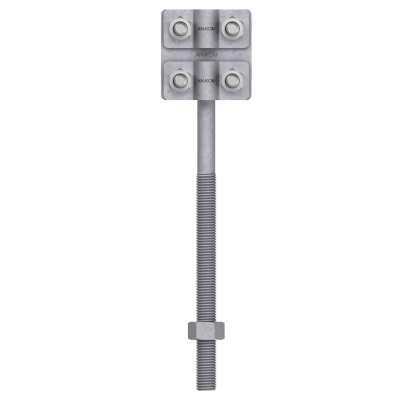

Tension (butterfly) screws. In combination with tensioning holders, they allow to build tensioning installations.
|
L (mm) |
hot galvanised steel | |
|---|---|---|
| 225 | symbol type |
C192200 AN-30/OG/ PDF
|

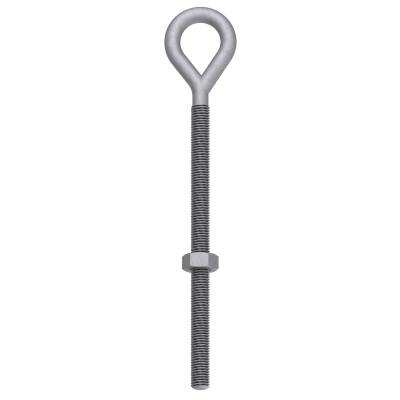

Eye screws. In combination with tensioning holders, they allow you to build tensioning installations.
|
L (mm) |
Lg (mm) |
hot galvanised steel | |
|---|---|---|---|
| 200 | 150 | symbol type |
C192216 AN-30D/OG/ PDF
|

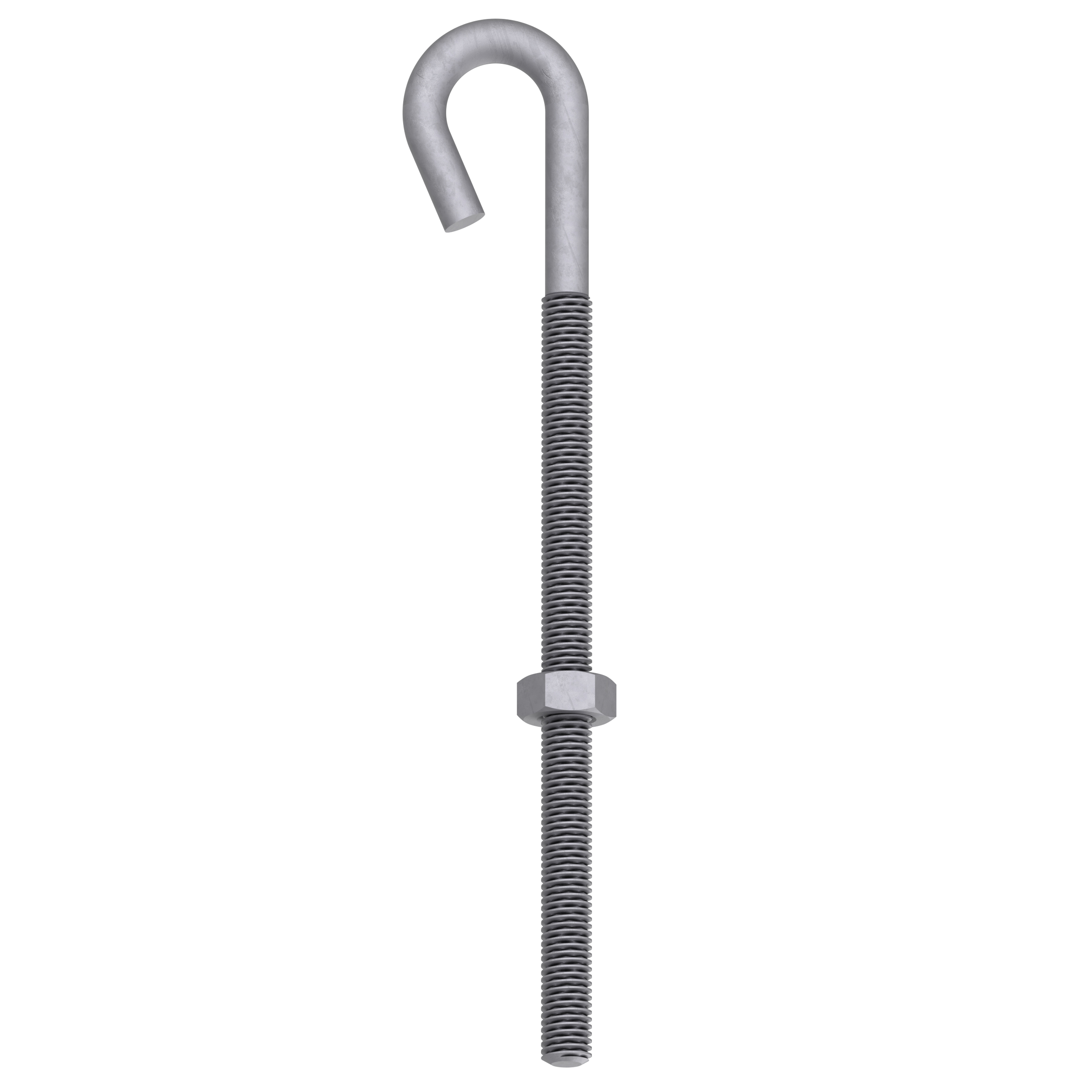

Hook tension bolts. In combination with the tensioning holders, they allow you to build tensioning installations.
|
L (mm) |
hot galvanised steel | |
|---|---|---|
| 200 | symbol type |
C192220 AN-30E/OG/ PDF
|

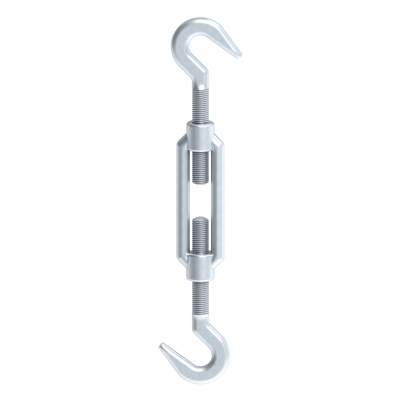

Hook-hook turnbuckles combined with tension holders allow you to build tension lightning protection systems.
| Lmax/min |
R (mm) |
M (thread) |
electro-galvanised steel | |
|---|---|---|---|---|
| 250 / 180 | 4,5 | 8 | symbol type |
C942392 AN-55B/OC/ PDF
|
| 320 / 240 | 8 | 12 | symbol type |
C942396 AN-56/OC/ PDF
|
| 320 / 230 | 7 | 10 | symbol type |
C942384 AN-55/OC/ PDF
|
| 430 / 320 | 9 | 16 | symbol type |
C942404 AN-56B/OC/ PDF
|

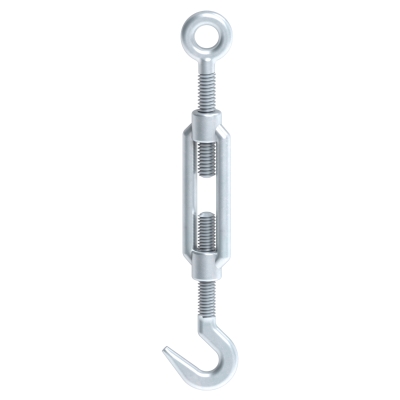

Hook-ear turnbuckles combined with tension holders allow you to build tension lightning protection systems.
|
Lmax/min (mm) |
R (mm) |
M (mm) |
electro-galvanised steel | |
|---|---|---|---|---|
| 300 / 220 | 7 | 10 | symbol type |
C942388 AN-55A/OC/ PDF
|
| 320 / 230 | 8 | 12 | symbol type |
C942400 AN-56A/OC/ PDF
|
