Control connection. Connecting a flat conductor to a round conductor.
| screws | conductors dimensions | hot galvanised steel | |
|---|---|---|---|
| M8 x 20 |
Ø8 / B* to 30 *B - tape conductor maximum width |
symbol type |
A191080 AN-07/OG/ +AlCu  PDF
|
Control connection. Connecting a flat conductor to a round conductor.
| screws | conductors dimensions | hot galvanised steel | stainless acid-resistant V4A steel | |
|---|---|---|---|---|
| M8 x 30 |
Ø8 / B* to 30 *B - tape conductor maximum width |
symbol type |
A191092 AN-07C/OG/ PDF
|
A281092 AN-07C/OH PDF
|
Control connection. Connecting a flat conductor to a round conductor.
| screws | conductors dimensions | hot galvanised steel | aluminium alloy | |
|---|---|---|---|---|
| M10 x 30 |
Ø8 / B* to 30 *B - tape conductor maximum width |
symbol type |
A191124 AN-07F/OG/ PDF
|
A921124 AN-07F/ALS/ PDF
|

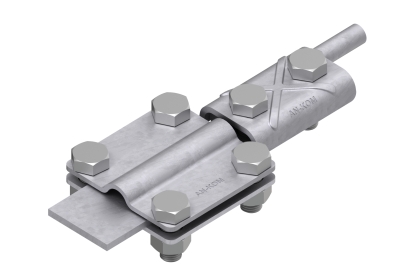

Control connection. Connecting a flat conductor to a round conductor.
| screws | conductors dimensions | hot galvanised steel | |
|---|---|---|---|
|
M8 x 20 M8 x 25 |
Ø8 / B* to 30 *B - tape conductor maximum width |
symbol type |
A191084 AN-07A/OG/ PDF
|
Control connection. Connecting a flat conductor to a round conductor.
| screws | conductors dimensions | hot galvanised steel | |
|---|---|---|---|
| M8 x 20 |
Ø8 / B* to 50 *B - tape conductor maximum width |
symbol type |
A191088 AN-07B/OG/ PDF
|
Control connection. Connecting a flat conductor to a round conductor.
| screws | conductors dimensions | hot galvanised steel | |
|---|---|---|---|
| M10 x 35 |
Ø8 / B* to 30 or B* to 30 / B* to 30 *B - tape conductor maximum width |
symbol type |
A191116 AN-07D/OG/-N PDF
|
