CLAMPS

1 screw sleeve clamps

Connection of round wires in parallel and cross configuration.

Attention! When placing an order, provide the symbol.
screws conductor dimensions hot galvanised steel
M10 x 40 Ø8 / Ø8 symbol
type
A191028
AN-02B/OG/ PDF

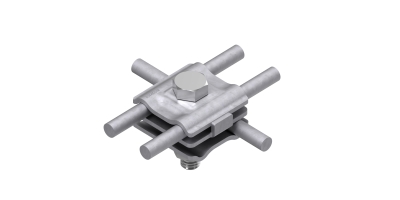

1 screw sleeve clamps

Connection of round wires in parallel and cross configuration.

Attention! When placing an order, provide the symbol.
screws conductor dimensions hot galvanised steel
M10 x 40 Ø8 / Ø8 symbol
type
A191032
AN-02D/OG/ PDF
1 screw sleeve clamps

Connection of round wires in parallel configuration.

Attention! When placing an order, provide the symbol.
screws conductor dimensions hot galvanised steel copper stainless acid-resistant V4A steel
M10 x 40 Ø8 / Ø8 symbol
type
A191012
AN-01B/OG/ PDF
A371012
AN-01B/CU/ PDF
A281012
AN-01B/OH/ PDF
1 screw sleeve clamps

Connection of round wires in parallel configuration.

Attention! When placing an order, provide the symbol.
screws conductor dimensions hot galvanised steel
M10 x 40 Ø8 / Ø8 symbol
type
A191020
AN-01D/OG/ PDF

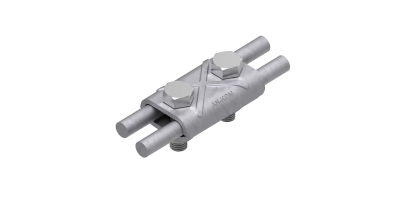

2 screws sleeve clamps

Connection of round wires in parallel configuration.

Attention! When placing an order, provide the symbol.
screws conductor dimensions hot galvanised steel copper stainless acid-resistant V4A steel
M8 x 25 Ø8 / Ø8 symbol
type
A191004
AN-01/OG/ PDF
A371004
AN-01/CU/ PDF
A281004
AN-01/OH/ PDF

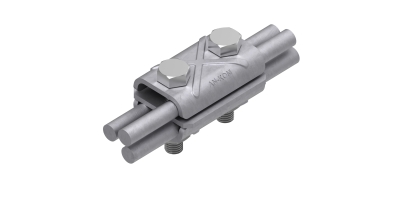

2 screws sleeve clamps

Connection of round wires in parallel configuration.

Attention! When placing an order, provide the symbol.
screws conductor dimensions hot galvanised steel
M8 x 35 Ø8 / Ø8 symbol
type
A191024
AN-02A/OG/ PDF
2 screws sleeve clamps

Connection of round wires in cross configuration.

Attention! When placing an order, provide the symbol.
screws conductor dimensions hot galvanised steel
M8 x 25 Ø8 / Ø8 symbol
type
A191008
AN-01A/OG/ PDF
2 screws sleeve clamps

Connection of round wires in parallel configuration.

Attention! When placing an order, provide the symbol.
screws conductor dimensions hot galvanised steel
M8 x 25 Ø8 / Ø8 symbol
type
A191016
AN-01C/OG/ PDF
