AIR TERMINATION RODS

cable end tip for high voltage insulated cable

For terminating a cable in PW high-voltage insulation. The end tip enables the correct termination of the cable in order to connect it to the mast spire or lightning protection system.

ASSEMBLY INSTRUCTIONS FOR PW TIPS

Attention! When placing an order, provide the symbol.
screws stainless acid-resistant V4A steel
M8 x 10 symbol
type
H286009
AN-88AN1/OH/ PDF
threaded cable end tip for high voltage insulated cable

threaded cable end tip for high voltage insulated cable

For terminating a cable in PW high-voltage insulation. The terminal enables the correct termination of the cable in order to connect it to the quad connector.

ASSEMBLY INSTRUCTIONS FOR PW TIPS

Attention! When placing an order, provide the symbol.
screws stainless acid-resistant V4A steel
M8 x 10 symbol
type
H286432
AN-88AGW/OH/ PDF
quadruple connecting holder

The quad connector designed for connection of four wires in high-voltage insulation.

Attention! When placing an order, provide the symbol.
stainless acid-resistant V4A steel
symbol
type
H286428
AN-88AB/OH/ PDF

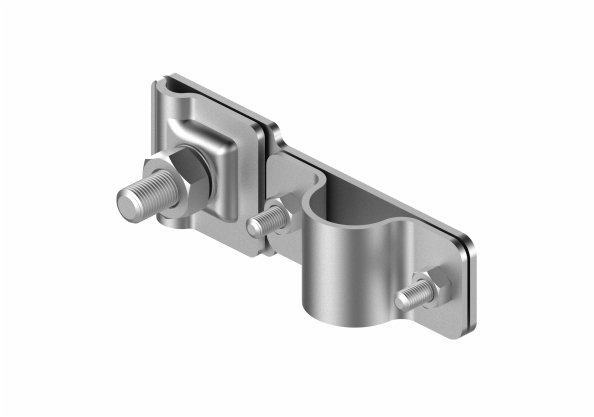

1P spire and high voltage cable end tip connector

The connector is designed to connect the mast spire to the PW with one high-voltage insulated wire.

Attention! When placing an order, provide the symbol.
screws stainless acid-resistant V4A steel
M10 x 35 symbol
type
H286260
AN-88C/OH/ PDF
2P spire and high voltage cable end tip connector

The connector is designed to connect the mast spire to the PW with two wires in high-voltage insulation.

Attention! When placing an order, provide the symbol.
screws stainless acid-resistant V4A steel
M10 x 35 symbol
type
H286264
AN-88D/OH/ PDF
high voltage potential equalization clasp

The potential equalization clasp for mounting on high-voltage insulated cable.

Attention! When placing an order, provide the symbol.
screws Ø
(mm)
stainless acid-resistant V4A steel
M10 x 35
M6 x 20
24 symbol
type
H286268
AN-88E/OH/ PDF
grounding clamp

Grounding clamp for potential equalization on the PW high-voltage insulated cable. The band should be installed at the end of the vertical insulator.

Attention! When placing an order, provide the symbol.
screws Ø
(mm)
stainless acid-resistant V4A steel
M8 x 20
M6 x 16
17 - 114 symbol
type
H286272
AN-88F/OH/ PDF
high voltage roof holder

The PW roof holder is used to lead the conductor along or across the roof.

Attention! When placing an order, provide the symbol.
Ø
(mm)
L
(mm)
stainless acid-resistant V4A steel
24 - 28 280 symbol
type
H286101
AN-88GD/OH/ PDF
high voltage coated holder

PW holder in plastic for a cable in high-voltage insulation on flat surfaces, e.g. a wall.
UV-resistant material.

Attention! When placing an order, provide the symbol.
Ø
(mm)
hot galvanised steel
24 symbol
type
H196276
AN-88G/OG/ PDF
high voltage bracket holder

PW holder for a cable in high-voltage insulation on flat surfaces, e.g. a wall.

Attention! When placing an order, provide the symbol.
screws Ø
(mm)
hot galvanised steel
M6 x 20 24 symbol
type
H196280
AN-88H/OG/ PDF
high voltage spacer bracket

The screwed PW distance holder for routing a cable in high-voltage insulation on flat surfaces, e.g. a wall, attic.

Attention! When placing an order, provide the symbol.
screws Ø
(mm)
L
(mm)
hot galvanised steel
M6 x 20 24 50 symbol
type
H196284
AN-88I/OG/ PDF
concrete bracket with cap

The concrete holder with a cap for leading a cable in PW high-voltage insulation.

Attention! When placing an order, provide the symbol.
screws Ø
(mm)
weight
(kg)
plastic
M6 x 20 24 ~ 1 symbol
type
H646292
AN-88K/TW/ PDF
wall mast bracket holder

The holder for mounting the wall spire to a round profile, e.g. a railing.

Attention! When placing an order, provide the symbol.
Ø1 / Ø2
(mm)
L1 / L2
(mm)
screws hot galvanised steel
30 - 40 / 30 - 40 90 / 90 M10 x 35 symbol
type
H196304
AN-88N/OG/ PDF
40 - 50 / 30 - 40 90 / 102 M10 x 35 symbol
type
H196300
AN-88M/OG/ PDF
50 - 60 / 30 - 40 90 / 120 M10 x 35 symbol
type
H196296
AN-88L/OG/ PDF
screw-on high voltage covered cable routing holder

The holder is used for leading a cable in high-voltage insulation in plastic.

Attention! When placing an order, provide the symbol.
Ø
(mm)
clamp type plastic
24 - 28 latch symbol
type
H646352
AN-88Z/TW/ PDF
high voltage covered cable routing holder

The holder is used for routing a PW high-voltage insulated cable along a round profile on a steel tape.

Attention! When placing an order, provide the symbol.
Ø1
(mm)
Ø2
(mm)
screws hot galvanised steel
50 - 100 24 - 28 M6 x 12
M8 x 20
symbol
type
H196340
AN-88Y100/OG/ PDF
100 - 200 24 - 28 M6 x 12
M8 x 20
symbol
type
H196344
AN-88Y200/OG/ PDF
200 - 300 24 - 28 M6 x 12
M8 x 20
symbol
type
H196348
AN-88Y300/OG/ PDF
insulated air termination holder

The holder for horizontal air terminals (assembly on the spire).

Attention! When placing an order, provide the symbol.
conductor
(mm)
stainless acid-resistant V4A steel
Ø8 - Ø10 symbol
type
H286324
AN-88U/OH/ PDF
high voltage cable routing holder

The holder is used for routing a PW high-voltage insulated cable along a round profile on a steel tape.

Attention! When placing an order, provide the symbol.
Ø1
(mm)
Ø2
(mm)
screws hot galvanised steel
50 - 100 24 M6 x 12
M8 x 12
M8 x 20
symbol
type
H196328
AN-88W100/OG/ PDF
100 - 200 24 M6 x 12
M8 x 12
M8 x 20
symbol
type
H196332
AN-88W200/OG/ PDF
200 - 300 24 M6 x 12
M8 x 12
M8 x 20
symbol
type
H196336
AN-88W300/OG/ PDF
screw-in high voltage mounting holder

The holder is used to lead the PW high-voltage insulated cable on flat surfaces, e.g. a wall.

Attention! When placing an order, provide the symbol.
Ø
(mm)
L
(mm)
hot galvanised steel
24 120 symbol
type
H196312
AN-88P/OG/ PDF
24 210 symbol
type
H196316
AN-88R/OG/ PDF
screw-in high voltage covered mounting holder

Screw-in material holder is used to lead the PW high-voltage insulated cable.

Attention! When placing an order, provide the symbol.
Ø
(mm)
clamp type plastic
24 - 28 latch symbol
type
H826364
AN-89A/TW/ PDF
high voltage concrete holder pad

Concrete holder pad for a cable in high-voltage insulation PW.

Attention! When placing an order, provide the symbol.
screws Ø
(mm)
holders hot galvanised steel
M6 x 20 24 B931516, B931588
B931504, B931508
symbol
type
H196288
AN-88J/OG/ PDF
high voltage insulated cable

PW high-voltage insulated cable. Used when the separation distance is not maintained.

ASSEMBLY INSTRUCTIONS FOR PW TIPS

TECHNICAL DETAILS

equivalent distance in the air (mm) ≤ 750
equivalent spacing in solid material (mm) ≤ 1500
min. bending radius of the cable (mm) 280
Attention! When placing an order, provide the symbol.
Ø
(mm)
other
24 symbol
type
H826013
AN-88BN1/IN/ PDF
high voltage assembly cable tie

Clamping tie for mounting the PW high-voltage insulated cable along the pipe.

Attention! When placing an order, provide the symbol.
L
(mm)
plastic
400 symbol
type
H646308
AN-88O/TW/ PDF
threaded cap

Threaded cap dedicated to the product H646352.

The assembly is done by inserting the cap into the holder, which as a result allows you to screw the H646352 holder onto the M6 ​​or M8 thread, depending on the selected threaded cap.

Attention! When placing an order, provide the symbol.
M
(thread)
plastic
6 symbol
type
H646356
AN-88ZT6/TW/ PDF
8 symbol
type
H646360
AN-88ZT8/TW/ PDF
stripping tool for high-voltage insulated cable

stripping tool for high-voltage insulated cable

The stripping tool for high-voltage insulated conductor is used to remove outer layers of insulation.

Attention! When placing an order, provide the symbol.
other
symbol
type
H826021
AN-88X/IN/ PDF
